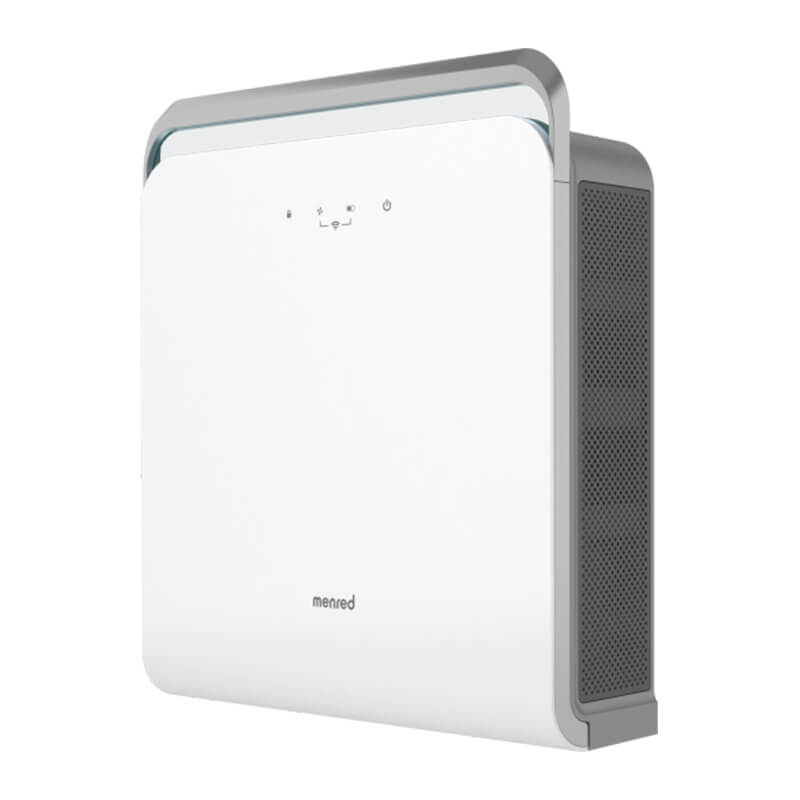

 Smart O2 S1 Wall Mounted Air Purification System Ventilator for Home

 Smart O2 S1 Wall Mounted Air Purification System Ventilator for Home  Smart O2 S1 Wall Mounted Air Purification System Ventilator for Home

Smart O2 S1 Wall Mounted Air Purification System Ventilator for Home

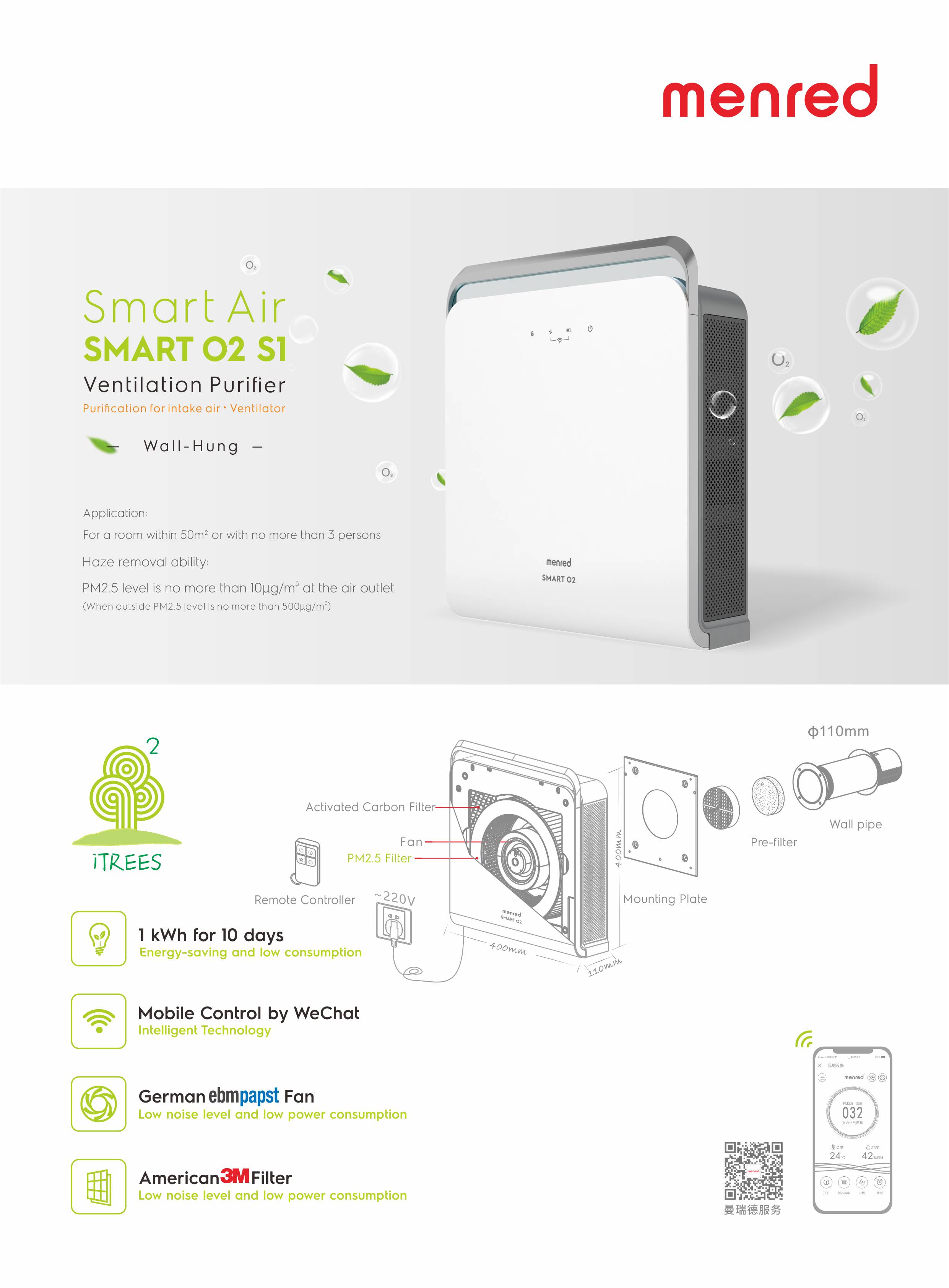

MENRED Smart O2 S1 wall-mounted ventilator, which won the 2018 Reddot Design Award, is specifically designed for rooms up to 50㎡ or with no more than three occupants. It is our most compact unit to date, with an EBM motor that quietly introduces up to 90 m³/h of fresh outdoor air into each space. The S1 Wall Mounted Air Purification Ventilator for Home is built using high-quality panel materials and features precise deployment of every feature, including every screw and every design detail, ensuring excellent performance and durability.


The Smart O2 wall-mounted ventilator delivers a continuous supply of fresh incoming air to your living space. Its compact design is perfect for rooms up to 50㎡ or with no more than three occupants. The Smart O2 Series S1 Wall-Mounted Air Purification Ventilator for Home features an EBM motor that quietly introduces up to 90 m³/h of fresh outdoor air into each room, enhancing indoor air quality, reducing the building’s environmental impact, and placing minimal load on the HVAC system. The sleek design features excellent panel materials and precise deployment of every screw and design element, reflecting the lean craftsmanship that has gone into creating the Smart O2 S1.



Features:

Fashionable Design: 2018 Reddot design award winner

Application: for a room within 50㎡ or not more than 3 persons (Air volume: one person 30m³/h)

Energy-saving and low consumption: 1 KW for 10 days

Dehaze capacity: PM2.5 not more than 10μg/m3 in the air outlet(when PM2.5 is not more than 500μg/m3 outdoors.)
Small size, low noise, low consumption

German EBM Motor: The efficiency of using radical blades is nearly 10% higher than that of ordinary blades.

Provides a constant, controlled supply of fresh air to your home year-round.Reduces unhealthy indoor air pollutants like VOCs, bacteria, viruses, and odors.Designed with very few components to deliver improved performance and reliability.




Product Parameters

ModelPower(V/Hz)Airvolume(m3/h)Power(W)Noise(dB(A))Weight(kg)
S1220/5090/60/302009/6/433/26/215.3


Filter function introduction

FilterClassQuantityMaintenancePeriod
Coarse filterG21Wash1 month
High efficiency  filterH131Change3 months
Activated carbon filter/2Change12 months


1. Coarse filter: effectively block large particles such as mosquitoes, willows, leaves and so on.

2. High efficiency filter: effectively filter PM2.5 particles

3. Activated carbon filter: absorb harmful gases such as odour, benzene, formaldehyde and so on.


FAQs

When should I replace the filter? When should I replace the filter?
The default setting of filter life is 6 months(which can be reset in WeChat). After using for 6 months, the filter icon will flash to remind the user to replace the filters. After replacing the filter, long press the filter button for 5 seconds to reset the time.
Read More
How to choose the suitable type of ventilator? How to choose the suitable type of ventilator?
If the area of a computer room is 60 sq meter(S=60), the net height is 3 meters(H=3), and there are 10 persons(N=10) in it. If it is calculated according to “Personal fresh air consumption”, and assume that:Q=70, the result is Q1=N*Q=10*70=700m³/h If it is calculated according to “Air change per hour”, and assume that: P=5, the result is Q2=P*S*H=5*60*3=900m³/h Since Q2>Q1,Q2 is better for selecting the unit. As to special industry such as hospitals(surgery and the special nursing rooms), labs, workshops, airflow required should be determined in conformity with regulations concerned.
Read More
