What does a thermal actuator do?

views: 528  time: 2023-07-07

A thermal actuator is a device that uses wax motor to produce mechanical motion or force. It operates by responding to changes in temperature and converting thermal energy into mechanical work.


Typically, a thermal actuator consists of a heating element, such as a resistor or bimetallic strip, and a mechanism that converts the thermal expansion or contraction resulting from the temperature change into linear or rotational motion. When the actuator is heated, the temperature change causes the wax to expand, which can be harnessed to generate force or motion.

Enquiry Now

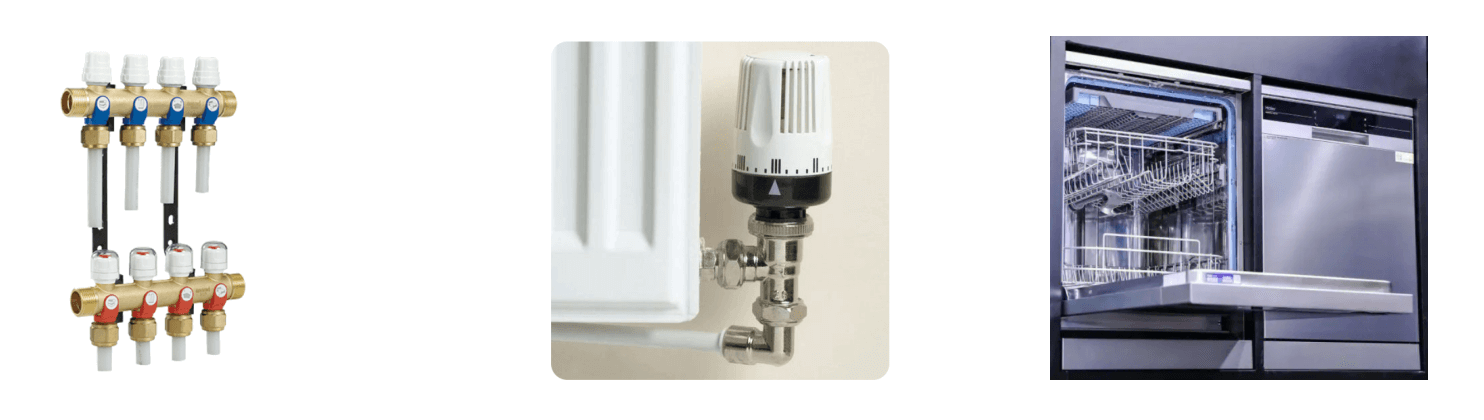

Thermal actuators(wax motors) find applications in various fields, such as:


Heating, Ventilation, and Air Conditioning (HVAC) systems: They are used for controlling valves, dampers, and flaps in HVAC systems to regulate the flow of air or fluids.

Automotive industry: Thermal actuators are employed for operating different components, including valves, intake manifolds, thermostats, and exhaust gas recirculation (EGR) systems.

Enquiry now

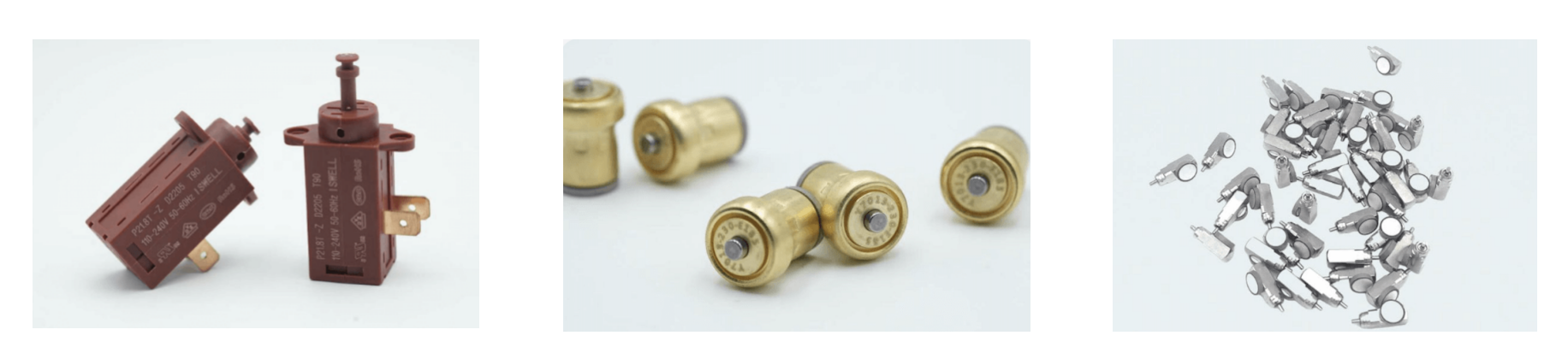

Wax motors are commonly used in home appliances, including washing machines, for door opening and closing mechanisms. Here’s how a wax motor can be applied to the door opening of a washing machine:


Design and Integration: The washing machine is designed with a door that needs to be opened and closed during loading and unloading of laundry. A wax motor is integrated into the washing machine’s mechanical system to actuate the door movement.


Actuator Placement: The wax motor is positioned in a suitable location within the washing machine, such as near the door hinge or latch mechanism. It is typically enclosed within a protective housing or bracket.


Heating Element Activation: When the washing machine’s control system signals the door to open, an electrical current is sent to the heating element of the wax motor. The heating element starts to generate heat.


Cooling and Contraction: Once the door is opened, the heating element is deactivated, causing the wax material to cool down. As it cools, the wax contracts, returning to its original size. This contraction prepares the actuator for the next actuation cycle.


Wax Expansion: As the heating element heats up, it transfers the heat to the wax material inside the actuator. The wax material undergoes thermal expansion, increasing in volume. This expansion generates a pushing force.


Overall, the primary function of a thermal actuator is to convert thermal energy into mechanical motion or force for the purpose of controlling or actuating various devices or systems.

How do thermal actuators work?


Thermal actuators work based on the principle of thermal expansion and contraction. They rely on the response of materials(wax element) to changes in temperature to generate mechanical motion or force. Here’s a general overview of how thermal actuators work:


Structure: Thermal actuators typically consist of a housing or casing, a heating element, and a mechanism for converting the thermal energy into mechanical motion. The housing encloses the components and provides support.


Heating Element: The heating element, often an electrical resistor or a bimetallic strip, is responsible for generating heat. When an electrical current passes through the resistor or when heat is applied to the bimetallic strip, it heats up.


Thermal Expansion: As the heating element increases in temperature, it transfers the heat to the actuator material, which is usually wax or a similar substance. When exposed to heat, the actuator material undergoes thermal expansion, causing it to increase in size.


Mechanical Conversion: The expansion of the actuator material is harnessed to produce mechanical motion or force. This conversion is achieved through various mechanisms based on the specific design and application of the thermal actuator. For example, the expansion might push a piston, rotate a shaft, or open/close a valve.


Cooling and Contraction: When the heating element is no longer generating heat or is cooled down, the actuator material starts to cool and contract. As it contracts, the mechanical motion or force generated during expansion is reversed. This contraction can be utilized to reset the actuator back to its original position or prepare for the next actuation cycle.


Overall, the cycle of heating, expansion, mechanical conversion, cooling, and contraction forms the basis of how thermal actuators work. By controlling the temperature of the heating element, the actuator can be precisely controlled to achieve the desired movement or force output.

The advantages of thermal actuators

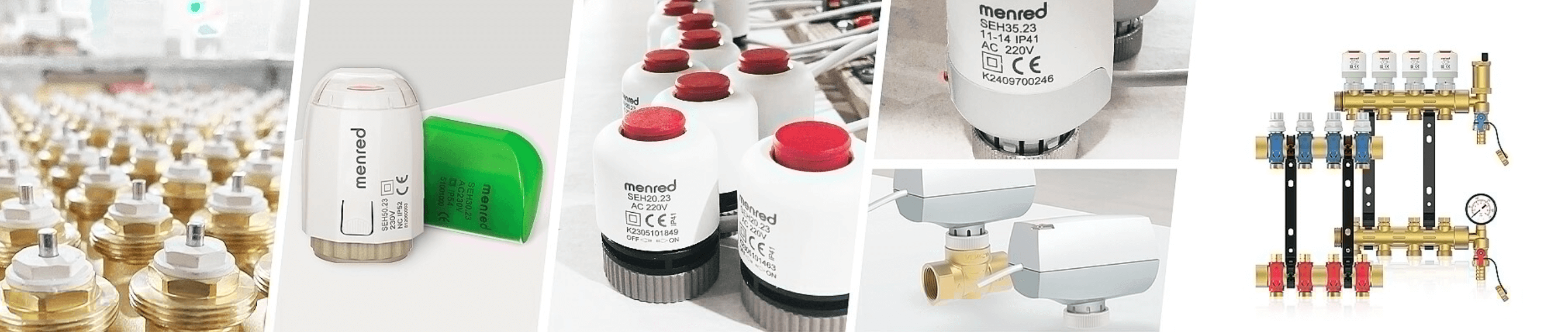

Thermal actuators offer several advantages when used in underfloor heating manifolds.


1. Individual Room Control: Underfloor heating systems often consist of multiple zones or rooms, each with its own thermostat. Thermal actuators allow for individual control and regulation of the water flow in each zone. This enables customized temperature control for each room, maximizing comfort and energy efficiency.


2. Fast Response: Thermal actuators can provide quick response times, allowing for rapid adjustment of the water flow. When a temperature change is detected by the thermostat, the thermal actuator can open or close the valve swiftly, ensuring prompt temperature adjustments in the floor heating system.


3. Accuracy and Precision: Thermal actuators can achieve precise control over the water flow in underfloor heating systems. This allows for accurate temperature regulation within each zone, providing comfortable and consistent heating throughout the space.


4. Energy Efficiency: By having individual control over each zone, thermal actuators help optimize energy usage in underfloor heating systems. Rooms that require less heating can have their water flow partially or fully shut off, reducing energy consumption and lowering heating costs.


5. Silent Operation: Thermal actuators operate silently, without generating noise or vibrations. This is especially important for maintaining a peaceful and quiet indoor environment in residential or commercial settings.


6. Low Maintenance: Thermal actuators have a simple design with minimal moving parts. This reduces the risk of mechanical failures and lowers the maintenance requirements for underfloor heating manifolds.


7. Compatibility: Thermal actuators are compatible with various types of control systems, including wired and wireless thermostats. This makes them versatile and suitable for integration into different underfloor heating setups.


Overall, the advantages of thermal actuators for underfloor heating manifolds include individual room control, fast response times, accurate temperature regulation, energy efficiency, silent operation, low maintenance, and compatibility with different control systems. These benefits contribute to improved comfort, energy savings, and convenience in underfloor heating systems.
