MENRED CS Series Dual-Adjustment Heating Manifold with Balancing Valve, FB30.25 Anti-Scaling Electrothermal Valve and RT1 LCD Heating Thermostat

Application

Fenghua Jiuli | Xian, Shanxi

Characteristics

1. Dual-Adjustment Heating Manifold with Balancing Valve

The MENRED CS Series Manifold incorporates balancing valve functionality and dual-adjustment features for hydronic heating water distribution. This design provides a means of adjusting heating water flow within the manifold system.

2. Anti-Scaling Electrothermal Valve

The FB30.25 is a DN25 anti-scaling electrothermal valve designed for heating water applications. It combines a brass valve body with an electrically operated actuator, providing valve operation for hydronic heating control.

3. LCD Room Temperature Control

The MENRED RT1 LCD Heating Thermostat allows users to monitor and adjust heating temperature settings through its display and control interface. It is designed for residential heating temperature management.

More about the project

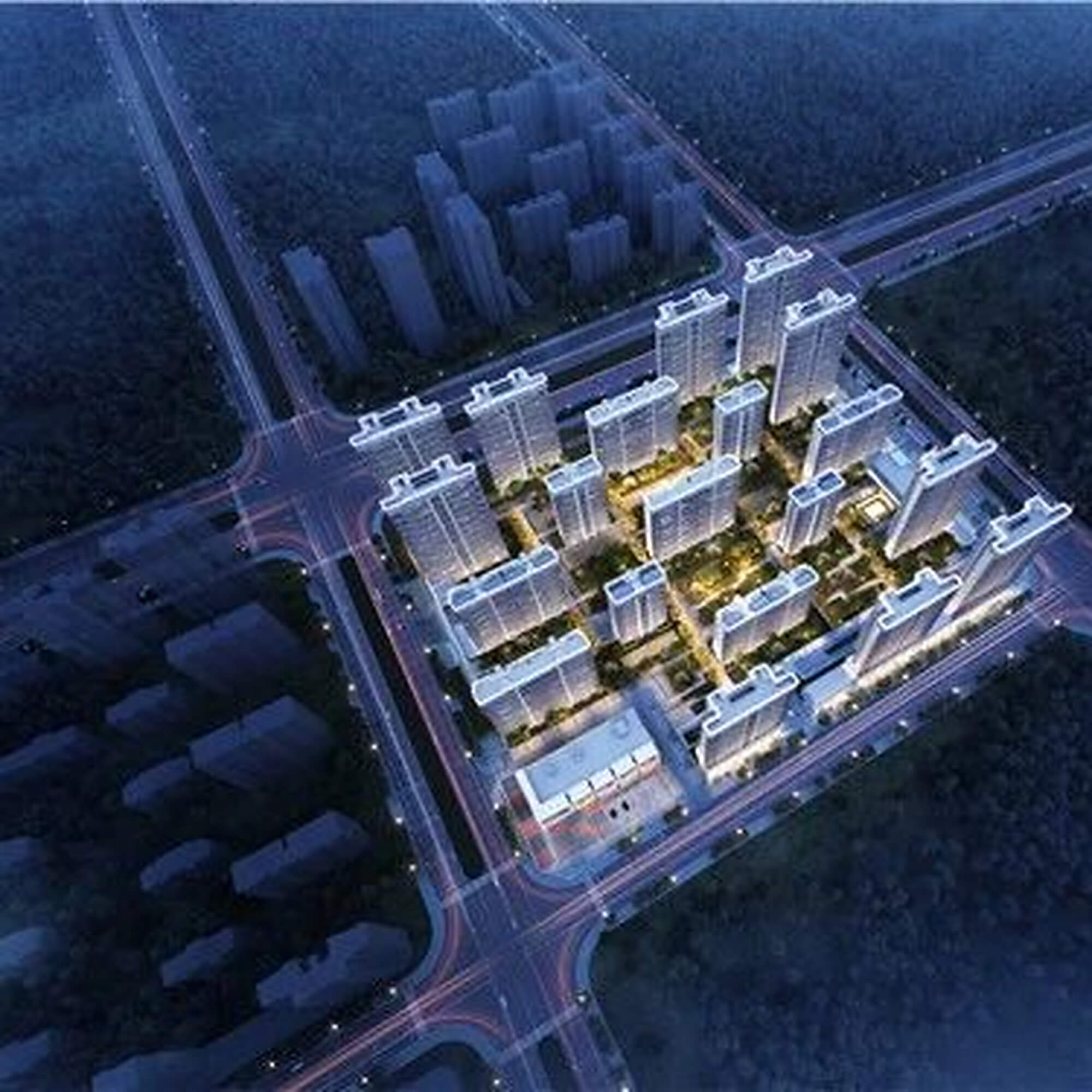

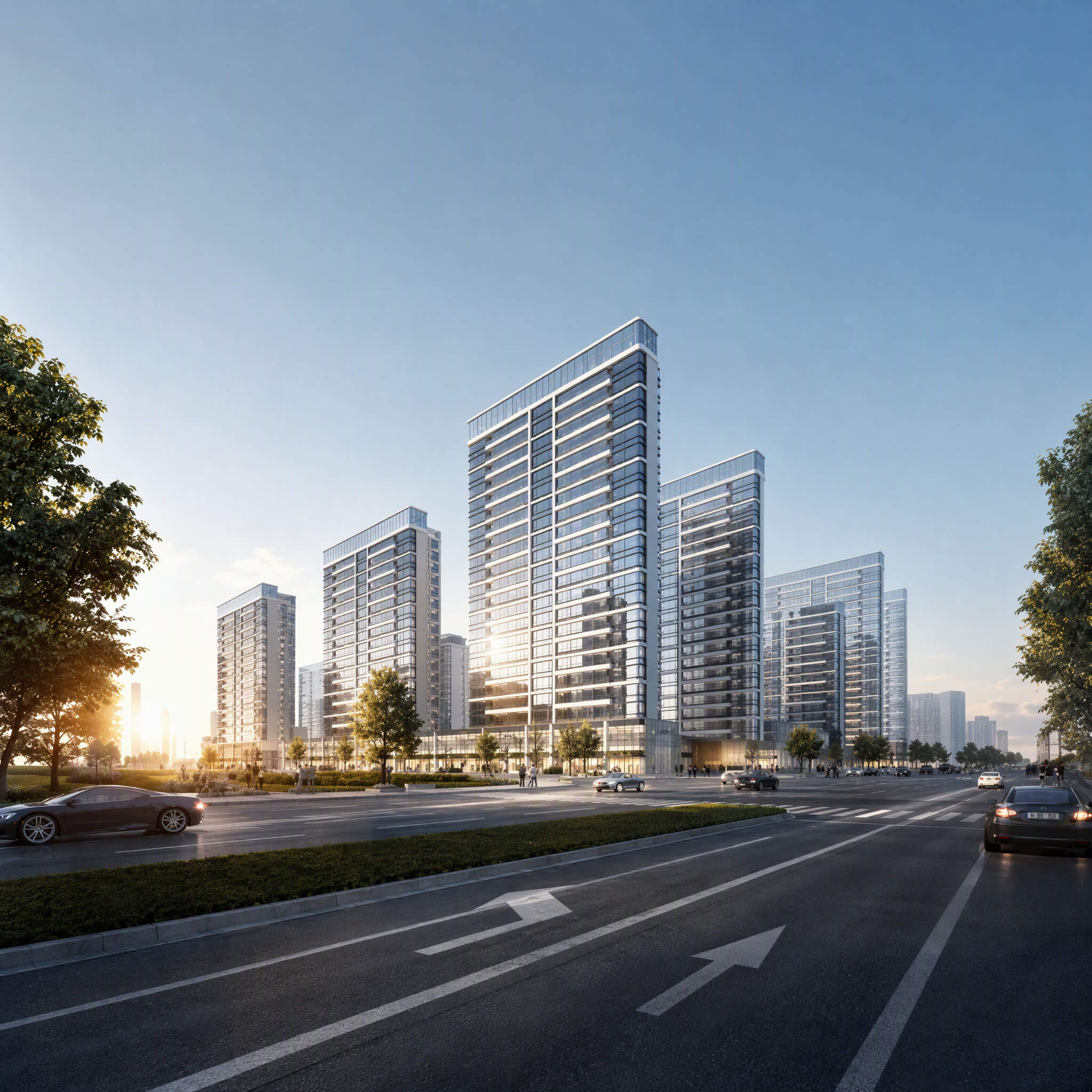

Fenghua Jiuli is a residential project featuring MENRED CS Series Dual-Adjustment Heating Manifolds with Balancing Valves, FB30.25 Anti-Scaling Electrothermal Valves and RT1 LCD Heating Thermostats.

In hydronic underfloor heating systems, water distribution, valve regulation and room temperature control are important functions for organizing the operation of the heating network.

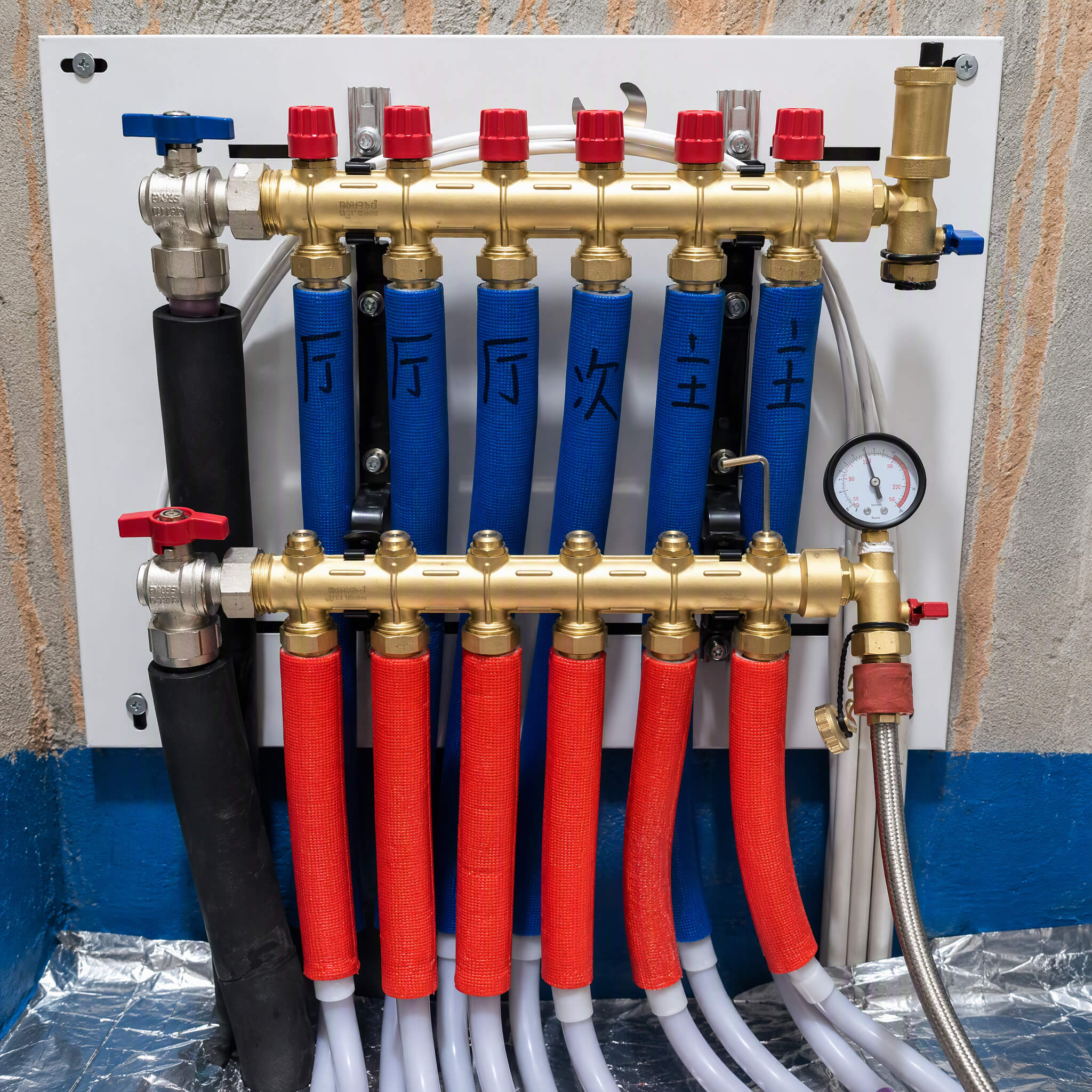

The CS Series manifold provides a centralized distribution component with balancing and adjustment capabilities. The FB30.25 electrothermal valve is designed for electrically controlled water-flow operation, while the RT1 thermostat provides an interface for residential temperature settings.

These products represent complementary functions within residential hydronic heating applications, covering manifold adjustment, valve operation and user temperature control.

The Fenghua Jiuli project demonstrates how MENRED hydronic heating components can be applied in residential buildings where organized heating water distribution and controllable heating operation are part of the system design.
