PE-Xa 5-layer Underfloor Heating Pipe

PE-Xa 5-layer Underfloor Heating Pipe PE-Xa 5-layer Underfloor Heating Pipe PE-Xa 5-layer Underfloor Heating Pipe

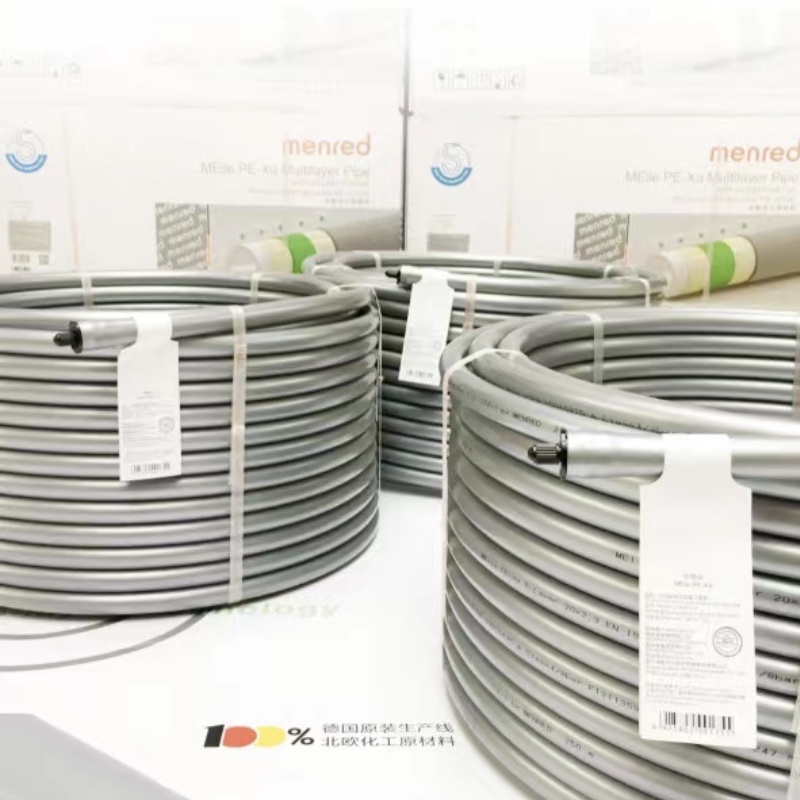

PE-Xa 5-layer Underfloor Heating Pipe
Menred Melle PE-Xa 5-layer O2 barrier underfloor heating pipes are with its co-extruded EVOH oxygen diffusion barrier, which limits oxygen permeability, produced with Boreaslis HE1878E,high- grade raw material enhane the temperatue, pressure, wear and creep capabilities to maintain the excellent long- term performance in the hydronic and radiant heating and cooling systems.

Description

Heating pipes are the main component in the hydronic radiant heating and cooling systemmenred MellePE-Xa underfloor heating pipe is a 5-layer oxygen barrier crosslinked polyethylene pipe, are produced with Borealis HE1878E, Japan Kuraray EVOH and Mitsui Adhesive raw material. Germany industry 4.0 advanced technology equipment and high-grade raw material enhance the temperature,pressure, wear and creep capabilities. Top quality long life guarantee, meet the ISO/EN/BS standards.

Menred PE-Xa pipe maintain the excellent long-term performance for radiant floor system. The floor heating or cooling installation constructed with the use of high quality menred Melle PE-Xa pipes exceed the life time of the heat source and reach the life span of the building itself.


PE-Xa underfloor heating pipe key features

>5-layer technology

> Oxygen barrier layer corrosion resistant

> Peroxide infrared crosslinking technology

> Non-toxic and harmless residues

> More temperature resistant, more pressure resistant

>long Lifetime life


Quality control

1. Material: High-grade material, Borealis HE1878E, Japan Kuraray EVOH and Mitsui Adhesive raw material.

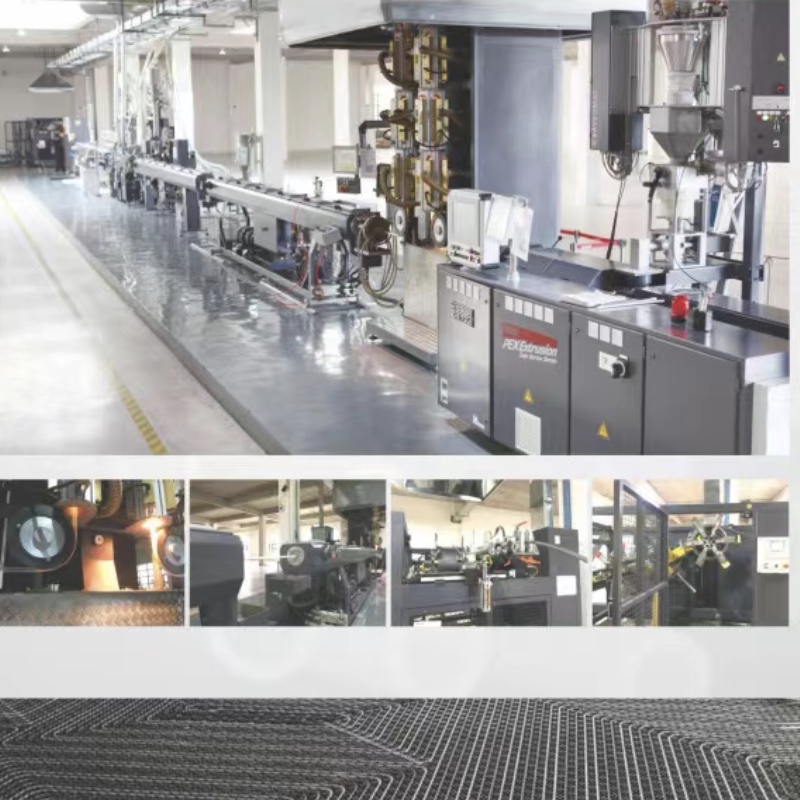

2. Production equipment: Germany industry 4.0 advanced technology equipment

3. Standards: ISO/EN/BS standards.

4. 100% pressure holding with 1.5 bar

5. Warranty: with a full of 10 year pipe warranty


Notice

1. The PE-Xa underfloor heating pipe must be laid by the professional plumbing & heating company.

2. With the non-professional without warranty


Selection Table

Pipe dimensionMeters/rollPackage size (mm)
10x1.2 mm480800x800x200
12x1.5 mm480800x800x200
14x1.8 mm360800x800x200
16x2.0 mm480800x800x400
20x2.3 mm360800x800x200
25x2.8 mm60/
32x3.6 mm60/


FAQs

What's the warranty of menred underfloor heating pipe? What's the warranty of menred underfloor heating pipe?
Menred underfloor heating pipes are with a full of 10 year pipe warranty.
Read More
What is underfloor heating systems? What is underfloor heating systems?
There're two kinds of underfloor heating system. 1. Electrical heating system is the system that the electric heating thermostat control the operation of electrical heating cables or heating mat to heat the floor. 2. Hydronic underfloor heating system is the system that water heating thermostat control valve actuator that control the water through the heating pipes to heat the floor.
Read More
What size pipe is used for central heating system? What size pipe is used for central heating system?
Central heating pipes for hydronic underfloor heating come in diameter sizes from 10mm to 32mm. In central heating system, the most popular pipe sizes are 16mm, 20mm and25mm. If your heating source is gas boiler, usually we recommend you the pipe sizes 16mm or 20mm, if your heating source is GSHP (Ground Source Heat Pump), the diameter size 20mm is more suitable.
Read More
People also ask how to find a supplier of underfloor heating pipes? People also ask how to find a supplier of underfloor heating pipes?
If you are looking for a supplier of underfloor heating pipes, here are the necessary requirements: 1. Produced from superior raw material, which enhance the temperature, pressure, wear and creep capabilities. 2. Produced by advanced equipment, which determine the good process engineering. 3. Up to internationally recognized standards, for example ISO/EN/BS standards 4. Professional R&D team, good craftsmen determine good quality. 5. Whether the underfloor heating pipe supplier have a specific warranty period or not? For example a full 10 years warranty.
Read More
