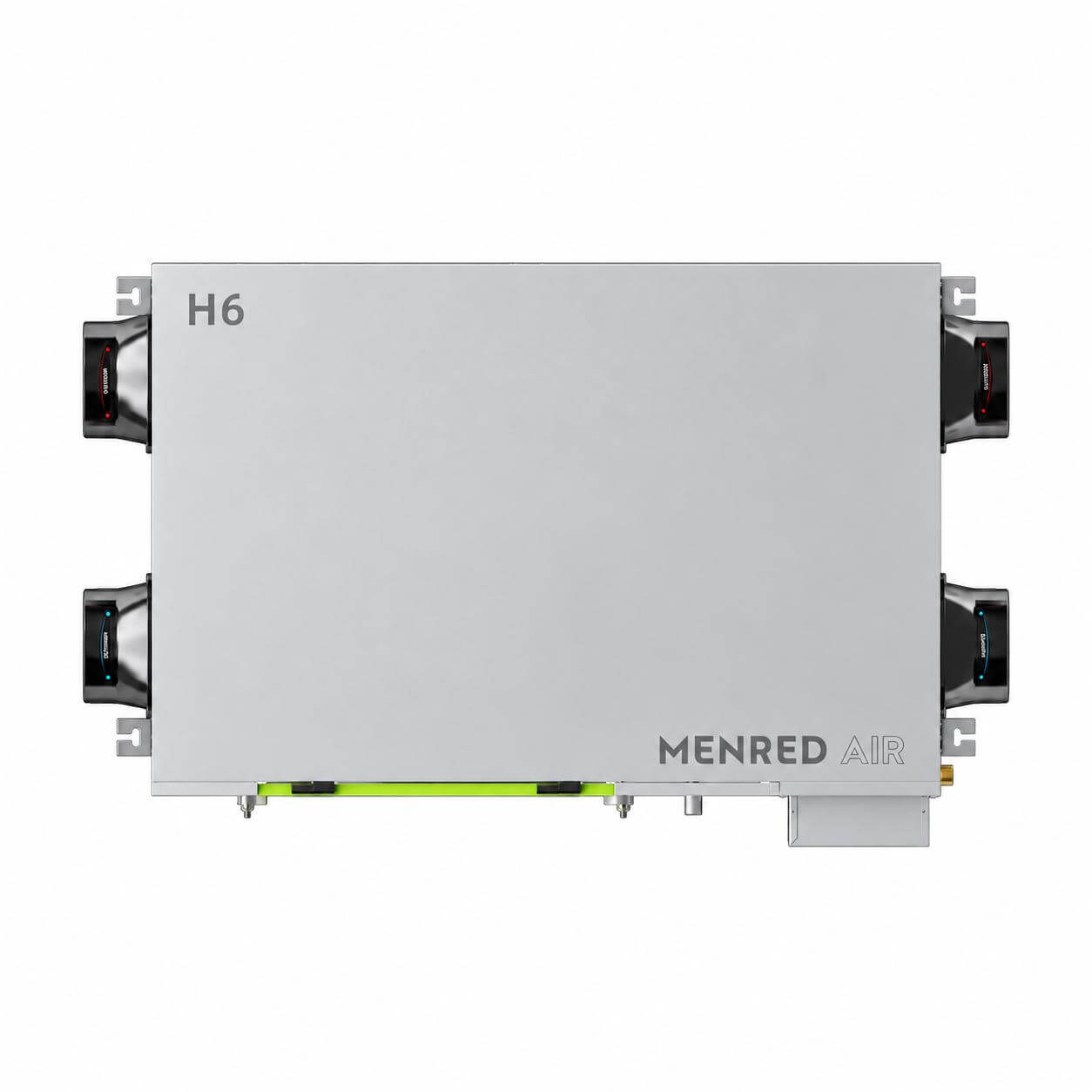

MENRED H6 ERV Humidifier

The MENRED H6 is a ceiling-mounted ERV humidifier that combines 300 m³/h fresh air ventilation, heat recovery, G4 + HEPA filtration and up to 2.5 L/h humidification. Designed for residential ventilation projects, it helps improve fresh air supply and indoor humidity comfort during dry seasons.

Inquiry Now

Residential Ventilation Designed for Dry-Season Comfort

Fresh air is important for a comfortable indoor environment. However, during winter or in dry climates, indoor air can become uncomfortably dry, especially when heating systems are operating.

The MENRED H6 is a ceiling-mounted ERV humidifier that combines fresh air ventilation, heat recovery, filtration and humidification in a centralized system.

With 300 m³/h rated airflow and up to 2.5 L/h humidification capacity, the H6 is designed for residential projects requiring both fresh air supply and additional indoor moisture.

Key Features and Benefits

1. Integrated Fresh Air and Humidification

The H6 combines mechanical fresh air ventilation with a built-in humidification function.

It provides 2 L/h standard humidification capacity and up to 2.5 L/h in ERV humidification operation, helping address dry indoor air conditions during the heating season.

2. 300 m³/h Rated Airflow with Heat Recovery

With 300 m³/h rated airflow, the H6 supports centralized residential ventilation.

The heat recovery system helps precondition incoming outdoor air using energy recovered from outgoing indoor air.

The published heating and cooling efficiencies are 65% and 57%, respectively.

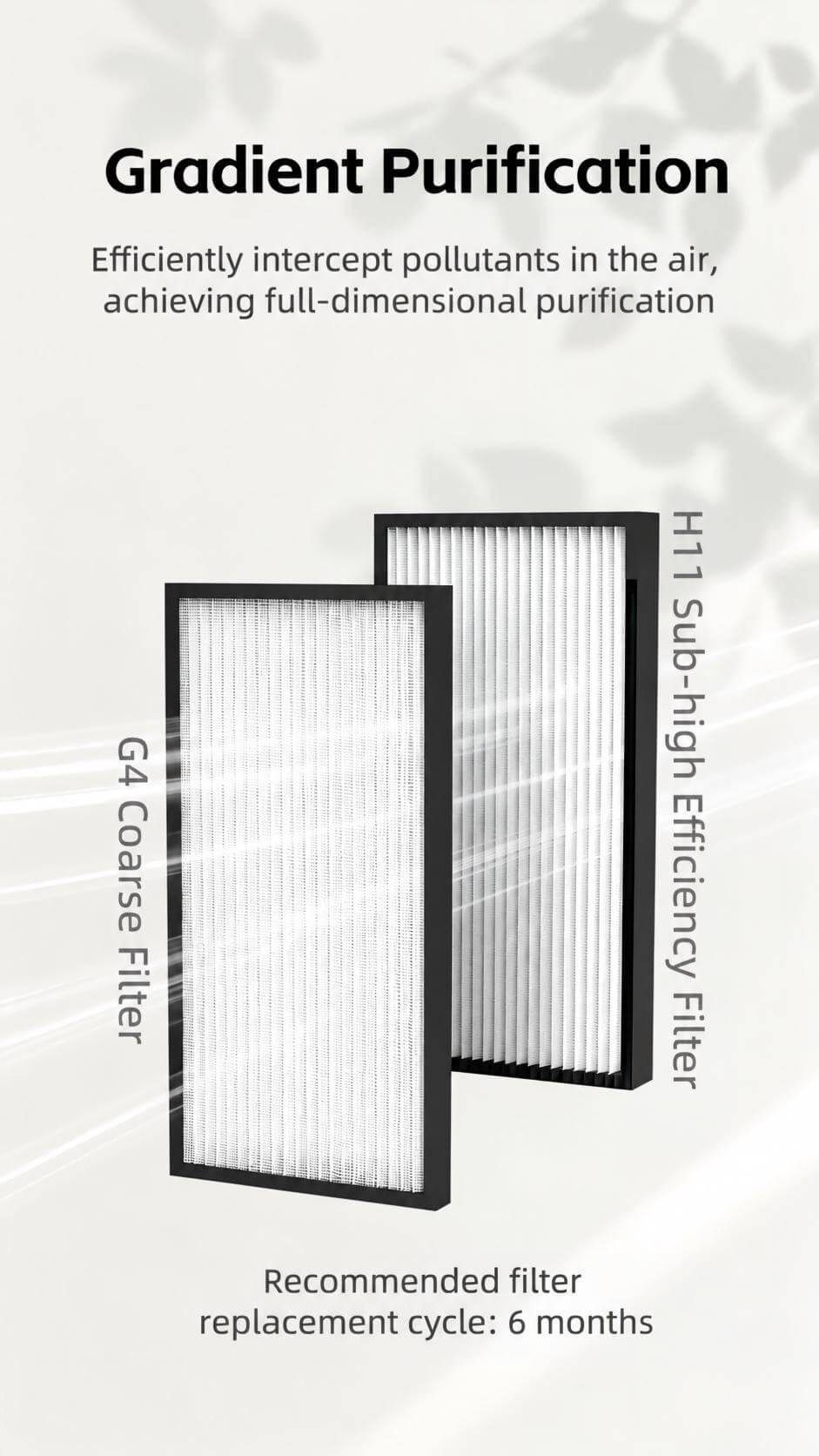

3. G4 + HEPA Filtration for Fresh Air Supply

The H6 features G4 + HEPA filtration with Toray filter media.

Its published PM2.5 filtration efficiency is 96.5%, supporting the removal of fine airborne particles from incoming fresh air.

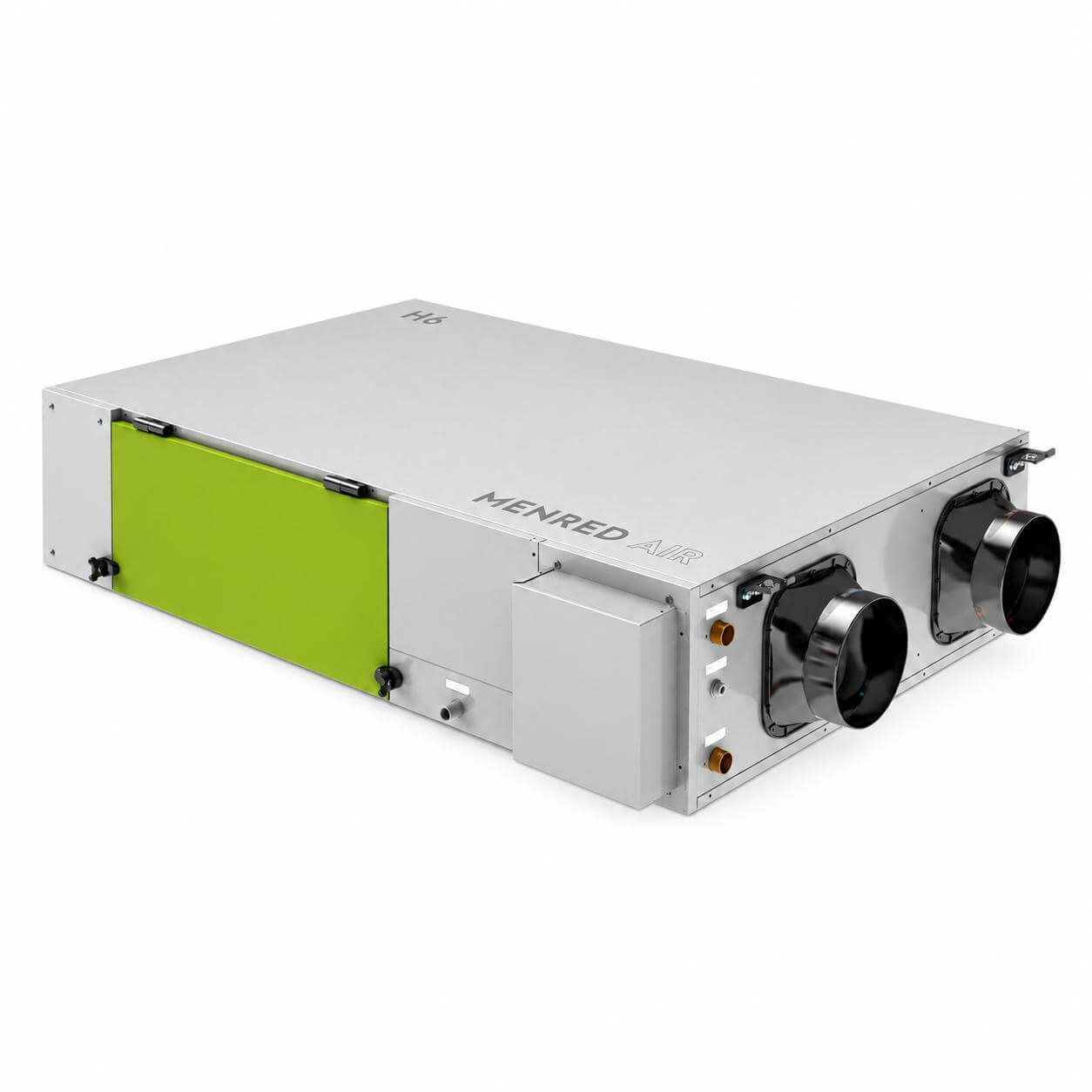

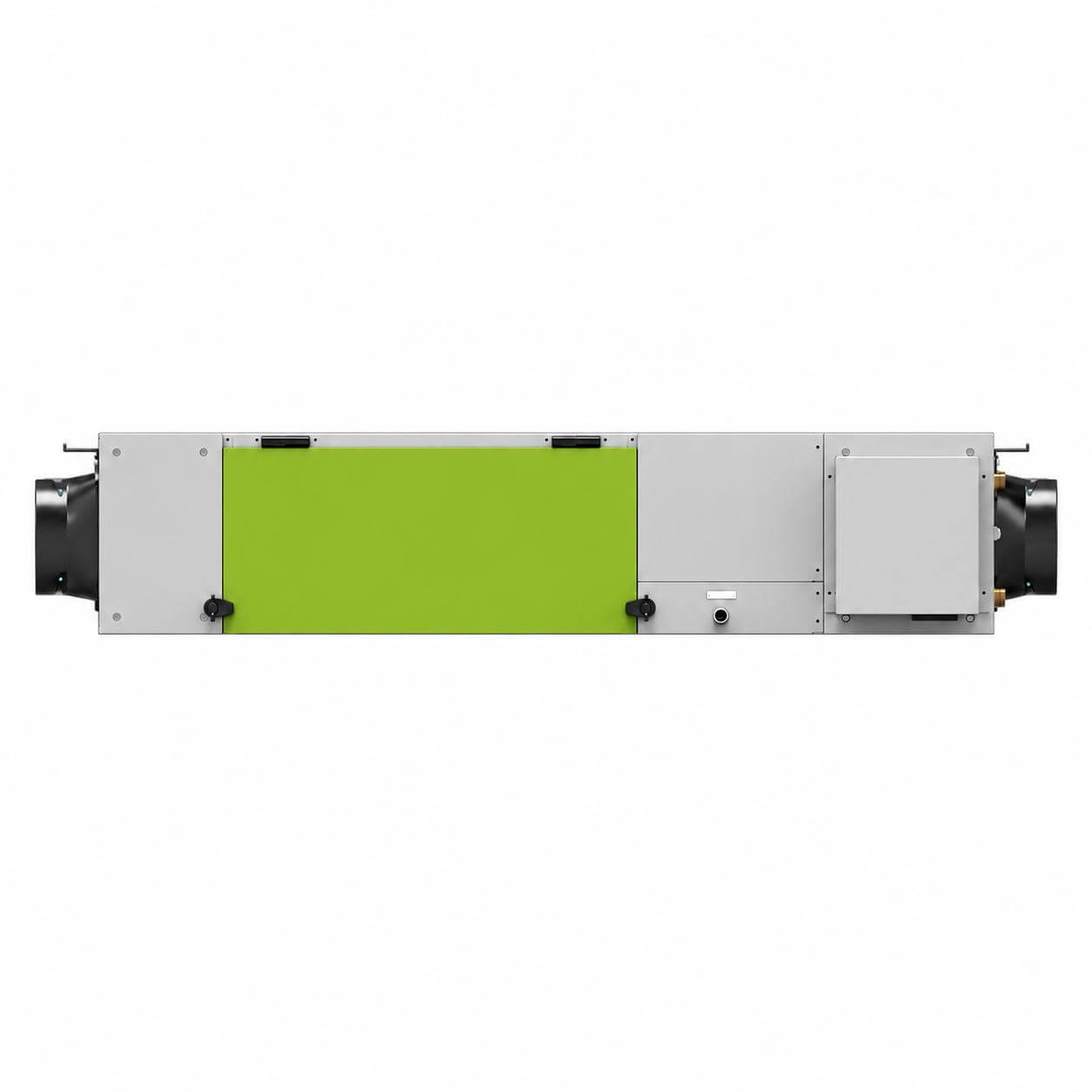

4. Ceiling-Mounted Design and DC Fan

The H6 has a ceiling-mounted body measuring 1420 × 865 × 270 mm.

The 270 mm body height supports concealed ceiling installation in appropriately designed spaces.

A DC fan provides ventilation airflow, with a published operating noise level of 34 dB(A).

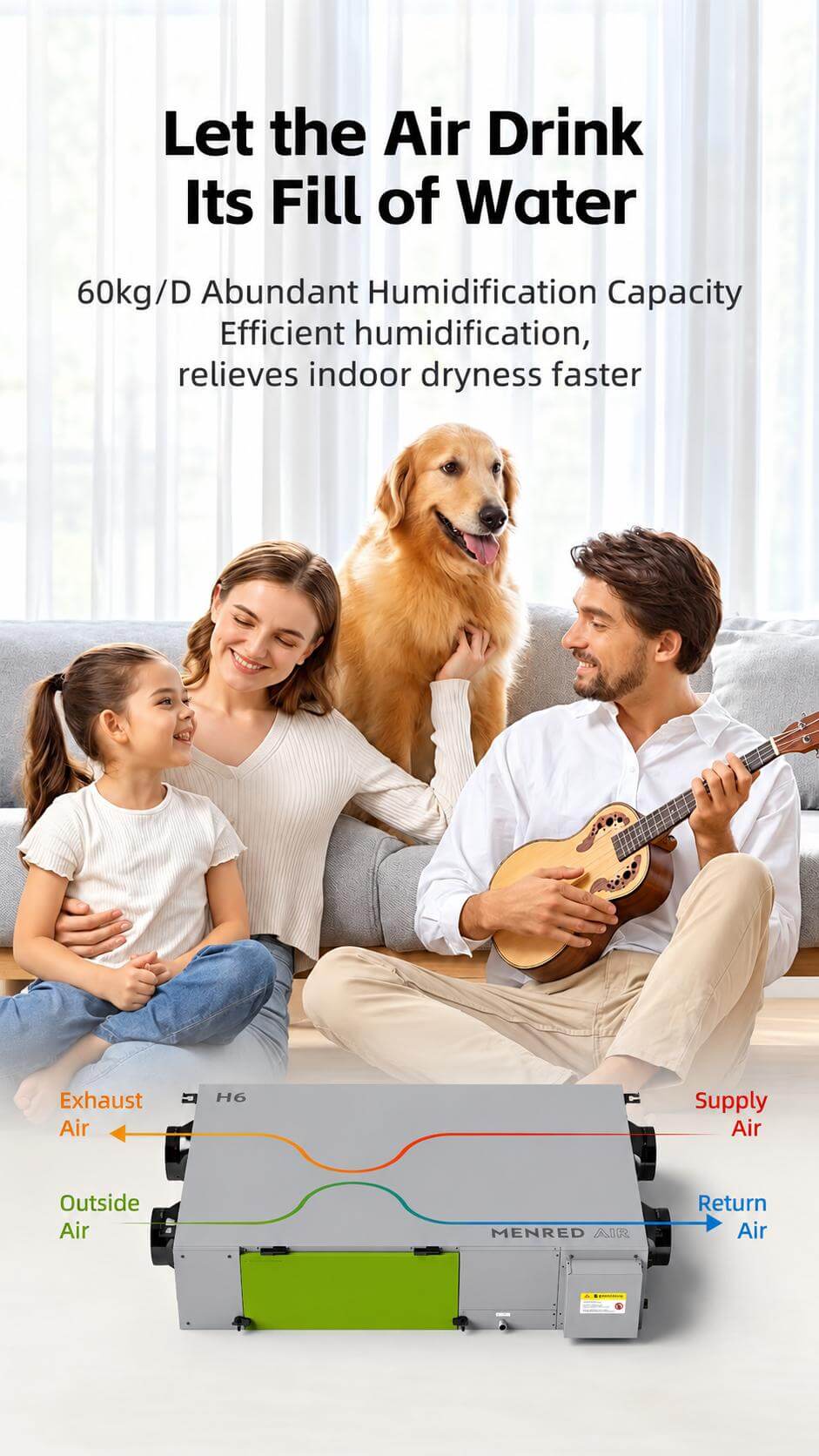

How Does the H6 ERV Humidifier Work?

The H6 brings together three indoor air treatment functions.

Fresh Air Ventilation: The unit supplies outdoor air and extracts indoor air through a centralized ventilation system.

Heat Recovery: Thermal energy is exchanged between incoming and outgoing air streams to reduce ventilation-related heating and cooling losses.

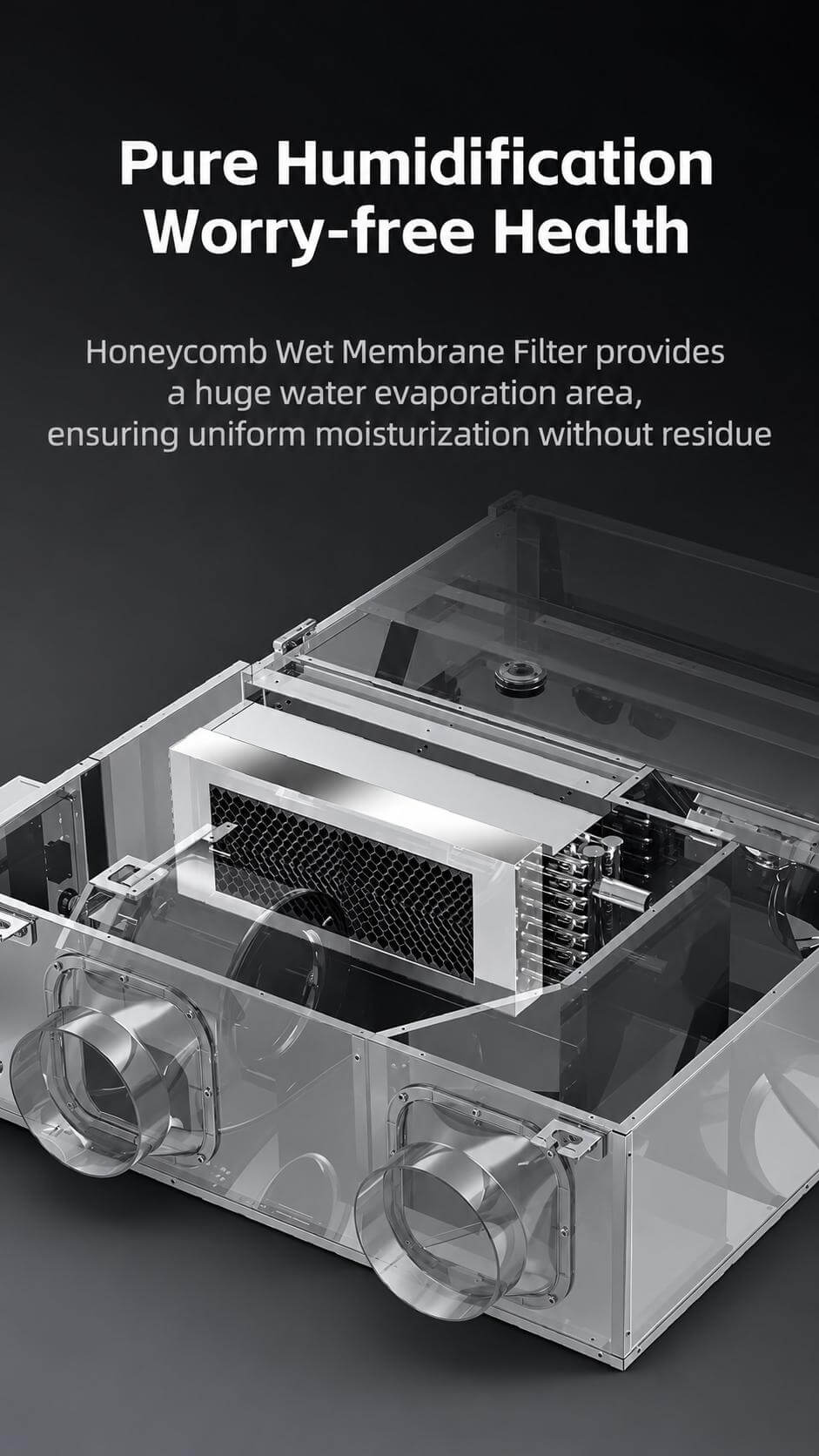

Humidification: The integrated humidification function adds moisture to help address dry indoor air conditions.

Combined with G4 + HEPA filtration, these functions support residential fresh air quality and humidity comfort.

Applications

Residential Homes and Apartments

The H6 is suitable for centralized fresh air ventilation projects where both air exchange and humidification are required.

Homes in Dry Climates

For residential buildings in regions with dry outdoor conditions, the H6 provides integrated ventilation and humidification functions.

Winter Heating Season

Indoor air can become dry during the heating season. The H6 is designed for projects where supplementary humidification is part of the ventilation strategy.

Concealed Ceiling Ventilation Projects

The ceiling-mounted structure can be incorporated into residential ventilation layouts with suitable ductwork, installation space and maintenance access.

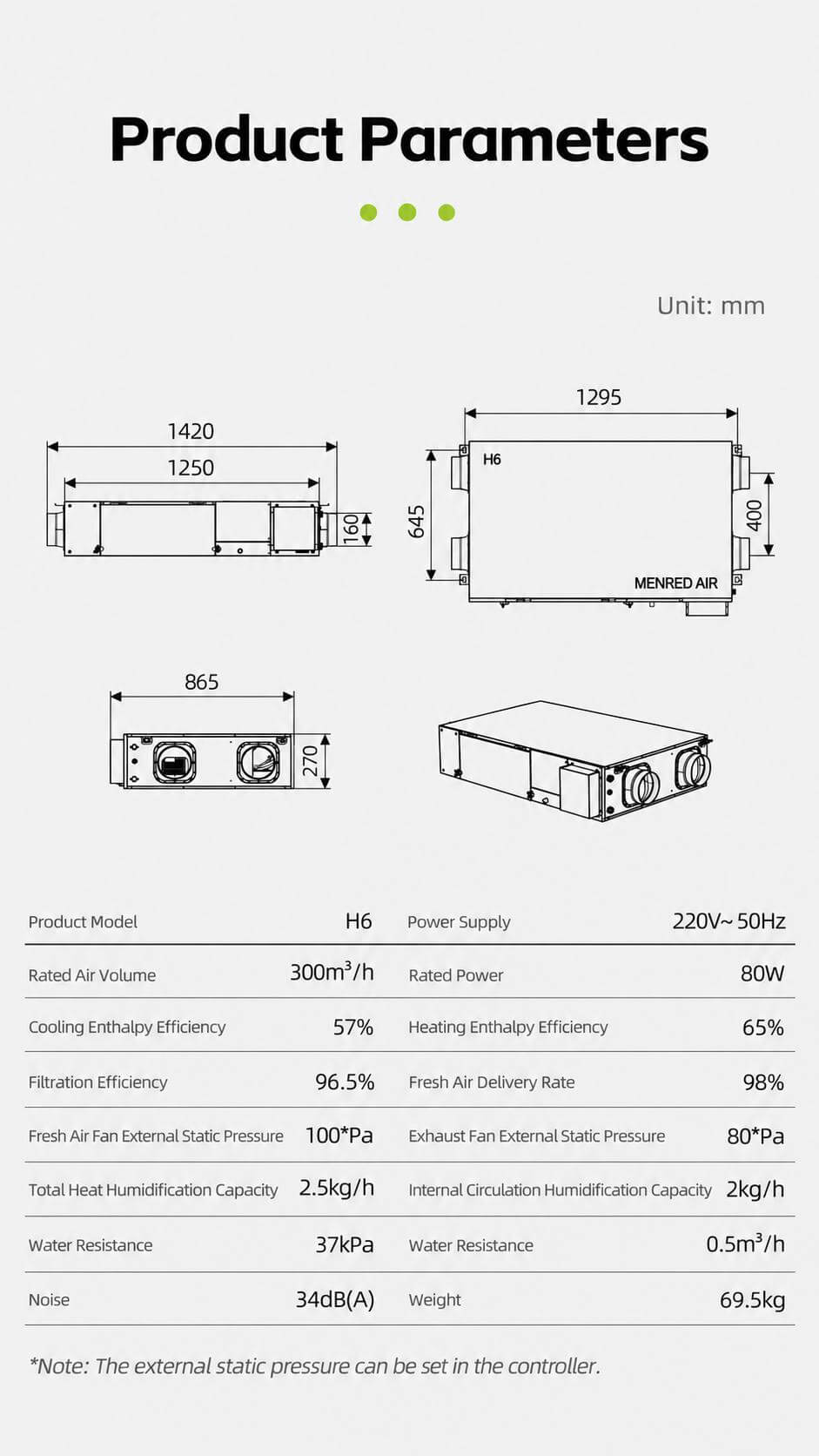

Technical Specifications

Model	H6
Product Type	Ceiling-Mounted ERV Humidifier
Rated Airflow	300 m2/h
Rated Power	80W
Power Supply	220-240 V~,50/60 Hz
Fan Type	DC Fan
Standard Humidification	2L/h
ERV Humidification	2.5 L/h
Heating Efficiency	65%
Cooling Efficiency	57%
Filtration	G4+HEPA
Filter Media	Toray
PM2.5 Filtration	96.5%
Noise	34 dB(A)
Applicable Area	Up to approximately 200 m2
Dimensions	1420 x 865 x 270 mm
Weight	69.5 kg
