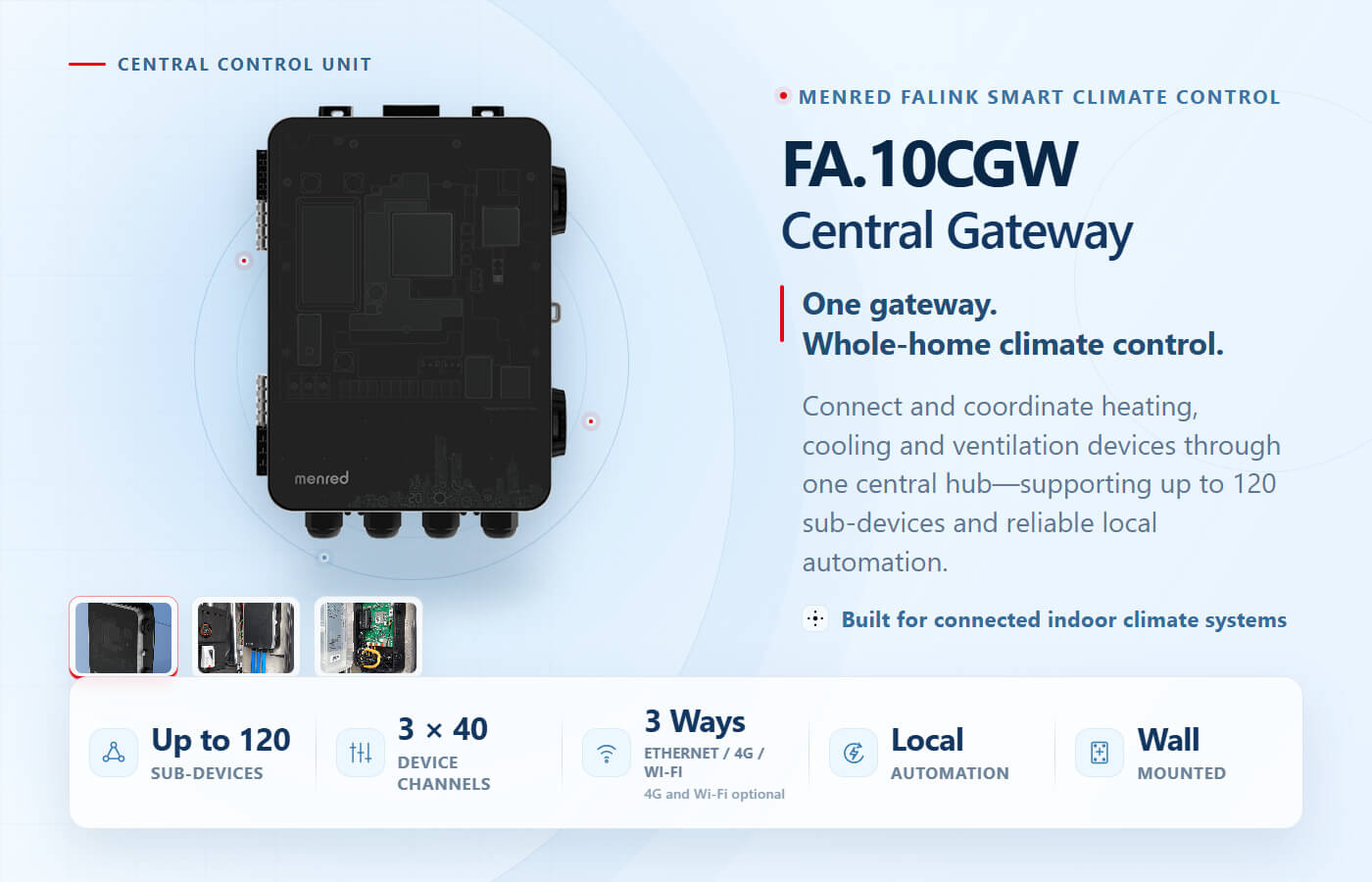

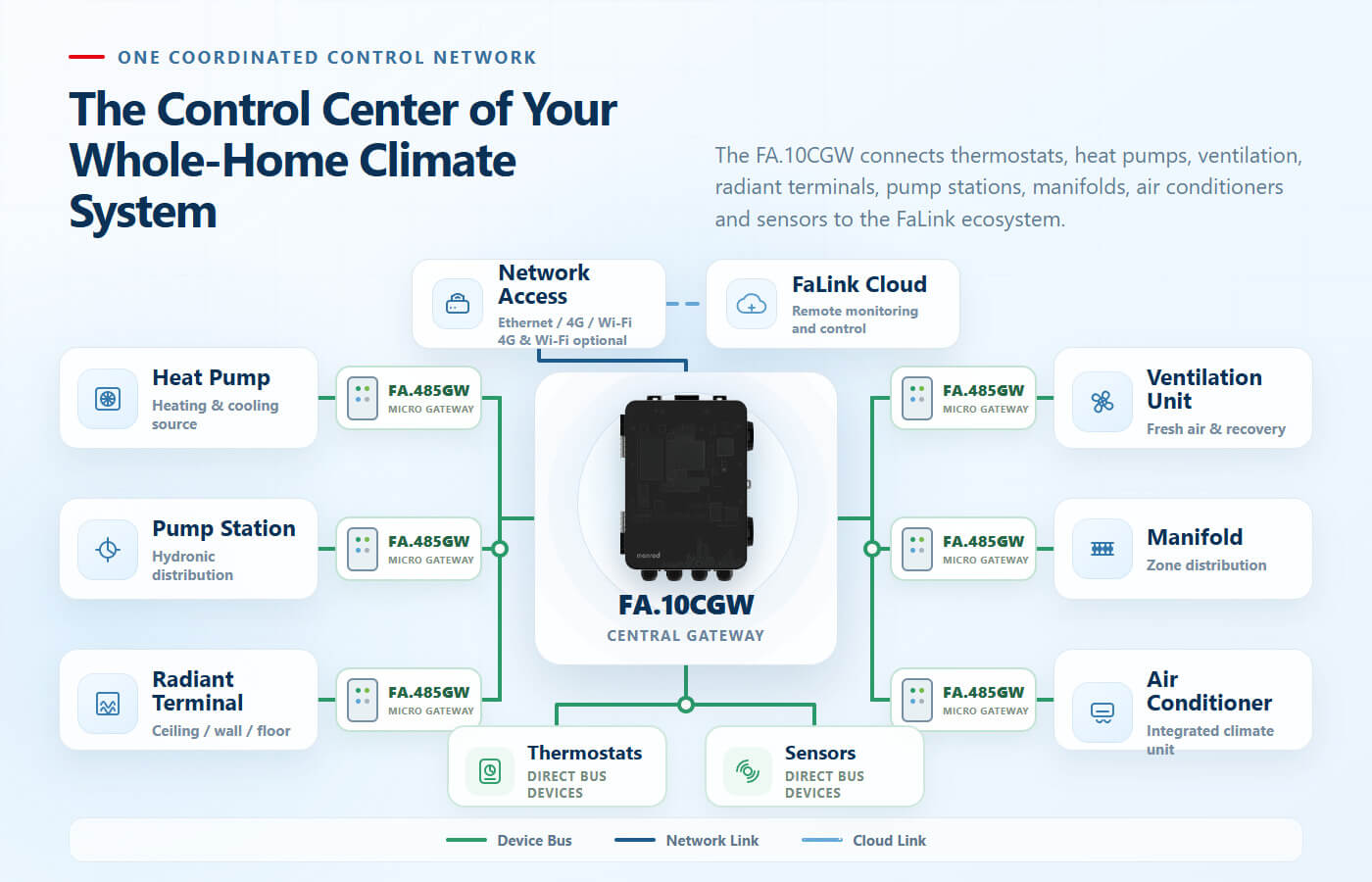

The FA.10CGW sits at the center of the control network. It gathers data from thermostats, heat pumps, ventilation units, and radiant terminals, then sends commands back out. This makes it a core building block for villas, apartments, energy-efficient homes, and the WUHENG Climate System.

Connect Up to 120 Sub-Devices

One gateway is enough for a whole house. The FA.10CGW supports 120 connected devices in total. That number comes from three channels, and each channel handles 40 devices. Thermostats, pump stations, heat pumps, fresh air units, and sensors all link back to the same hub. A large home with many rooms and many terminals still needs just one gateway. This keeps the system simple and the wiring clean.

Standard KNX Wiring

The FA.10CGW uses standard KNX wiring terminals. KNX is the global open standard for building control, so the gateway works with a wide range of certified devices, not just one brand. Because KNX is an open standard, most installers already know it well. Integration is faster, and future expansion stays open. Power comes in at AC 220V 50Hz, and the gateway outputs DC 24V (Imax 1A) to drive connected equipment.

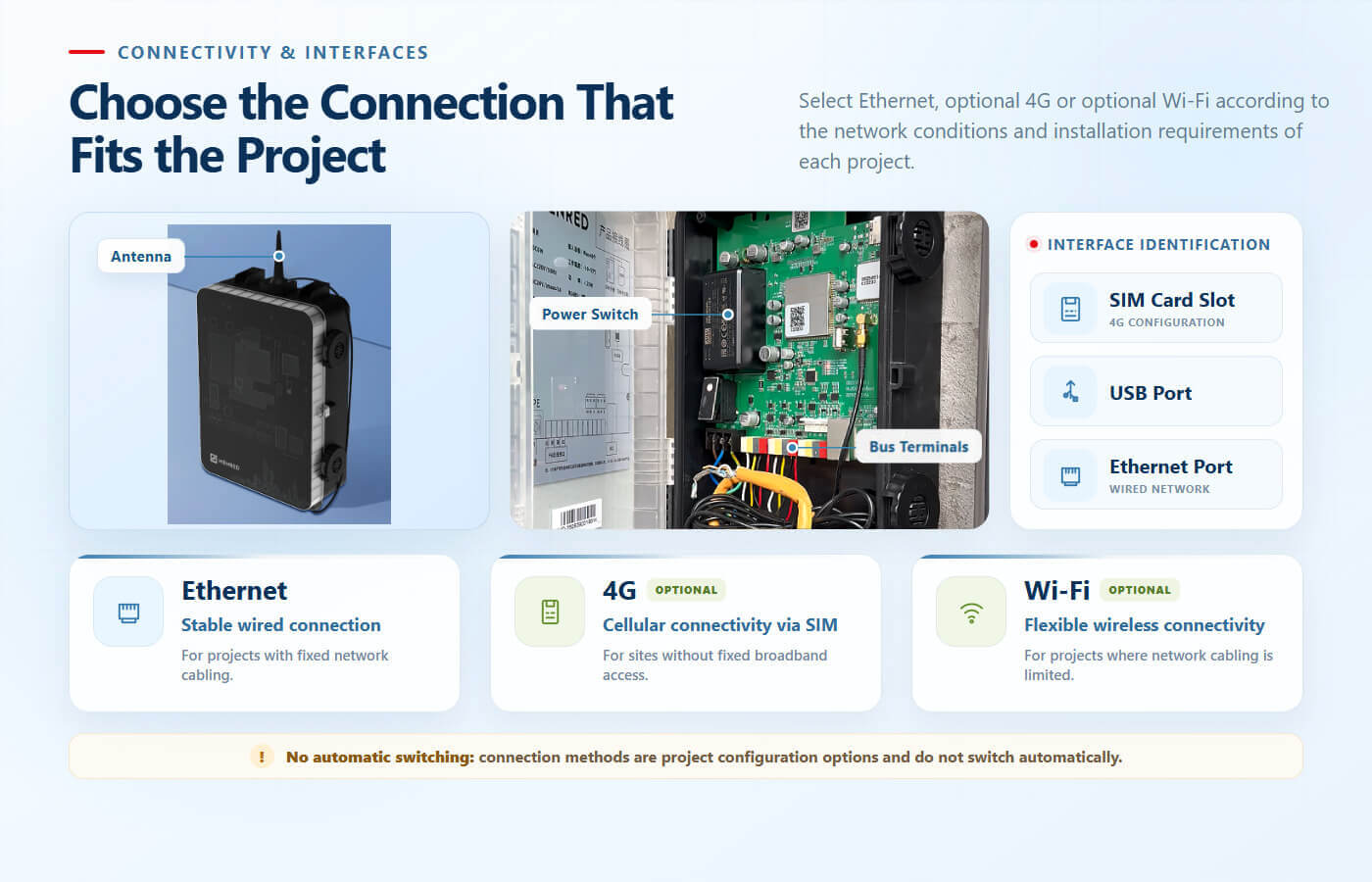

Three Ways to Get Online

One network is not always enough. The FA.10CGW offers three connection paths:

• Ethernet port: a wired link for the most stable, low-latency connection.

• 4G: a cellular SIM card slot keeps the gateway online where wired internet is not available.

• Wi-Fi: a wireless option for flexible placement (4G and Wi-Fi are optional).

Wired and wireless back each other up. If one path drops, another takes over, so the gateway stays online. Setup is plug-and-play, with no special skills required.

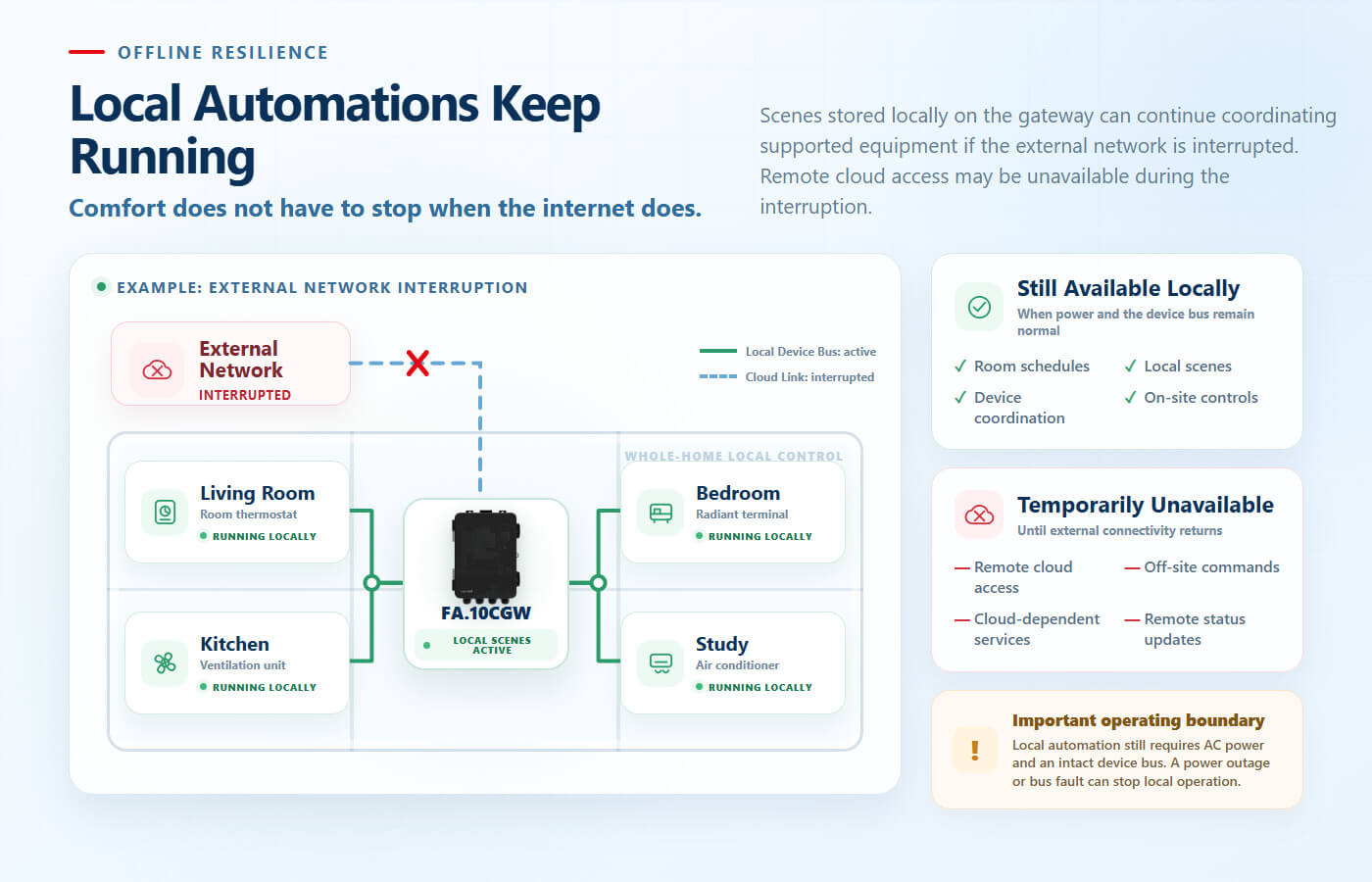

Automation That Works Without the Internet

The internet is not always steady. The FA.10CGW does not depend on it. Automation scenes run locally, right on the gateway. If the network fails, the system keeps working. Heating, cooling, and ventilation stay on schedule. Your home stays comfortable, network or no network. This is a real safeguard, not a marketing line.

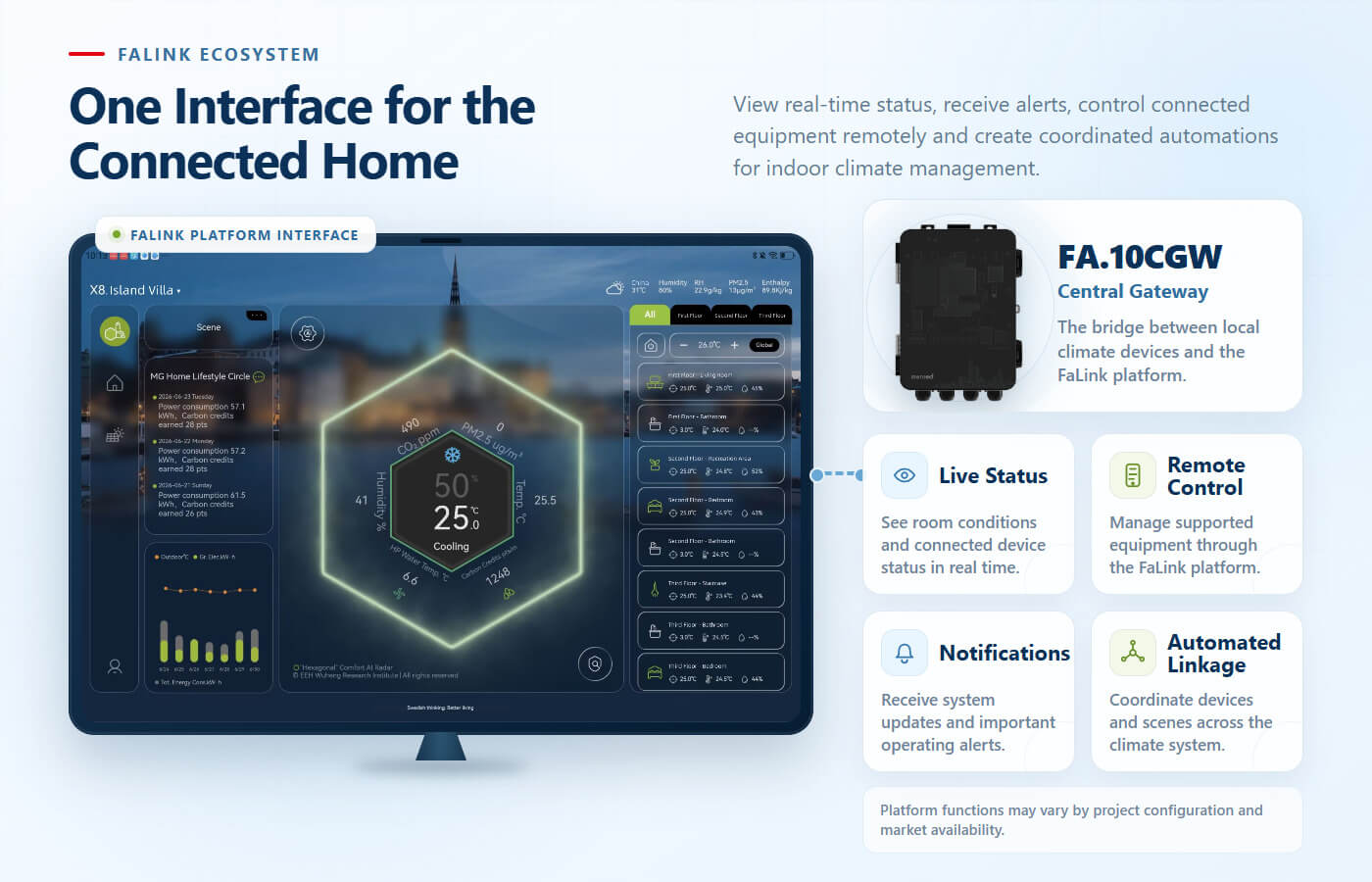

One App for the Whole Home

The FA.10CGW works with the FaLink ecosystem. Through the app, you see the live status of every room. You get push notifications. You control devices from anywhere and set up automated linkage between them. Check the temperature before you get home. Turn on the fresh air unit from the office. The whole climate system answers to one screen.

Core Features & Benefits

The FA.10CGW brings the whole smart home together:

• Whole-Home Hub: one gateway manages up to 120 devices across every room.

• Wide Coverage, Strong Signal: reaches terminals throughout a large home.

• Multi-Protocol Support: standard KNX wiring connects a wide device range.

• Multiple Connection Methods: Ethernet, 4G, and Wi-Fi keep the gateway online.

• Local Automation: automation scenes run even when the internet is down.

• Remote Control: the FaLink app monitors and controls the home from anywhere.

• Easy Installation: plug-and-play setup with familiar KNX terminals.

Installation & Safety

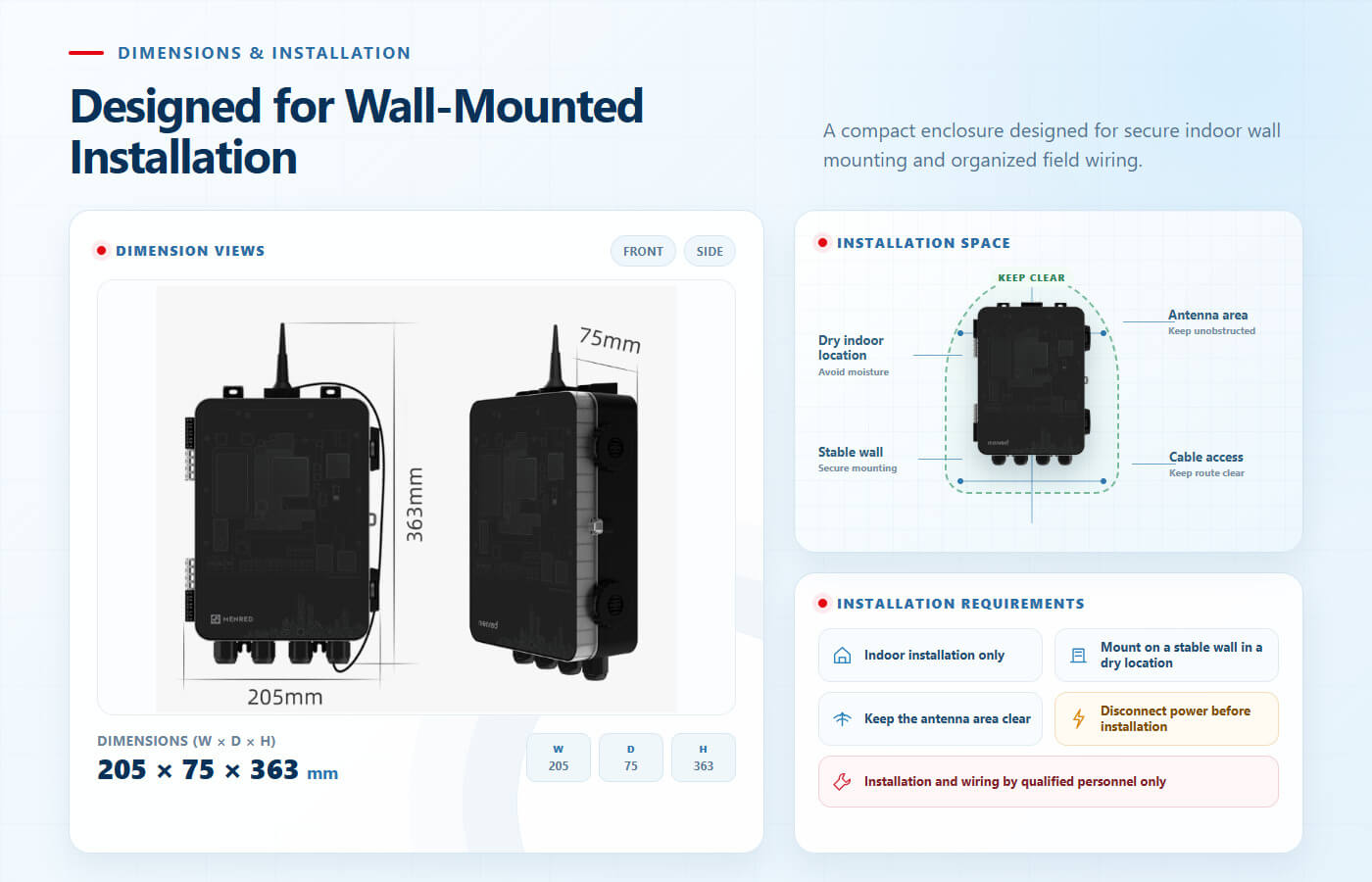

• Wall mounting: fix the gateway to a solid wall in a dry indoor spot.

• Wiring: connect devices through the standard KNX terminals; keep the antenna clear for signal.

• Power supply: AC 220V 50Hz input; the gateway outputs DC 24V (Imax 1A).

• Electrical safety: installation by qualified personnel only.

• Operating limits: indoor use, in an ambient temperature of -10 to 55 °C.
