LS8 Room Thermostat for Underfloor Heating

LS8 Room Thermostat for Underfloor Heating LS8 Room Thermostat for Underfloor Heating

LS8 Room Thermostat for Underfloor Heating

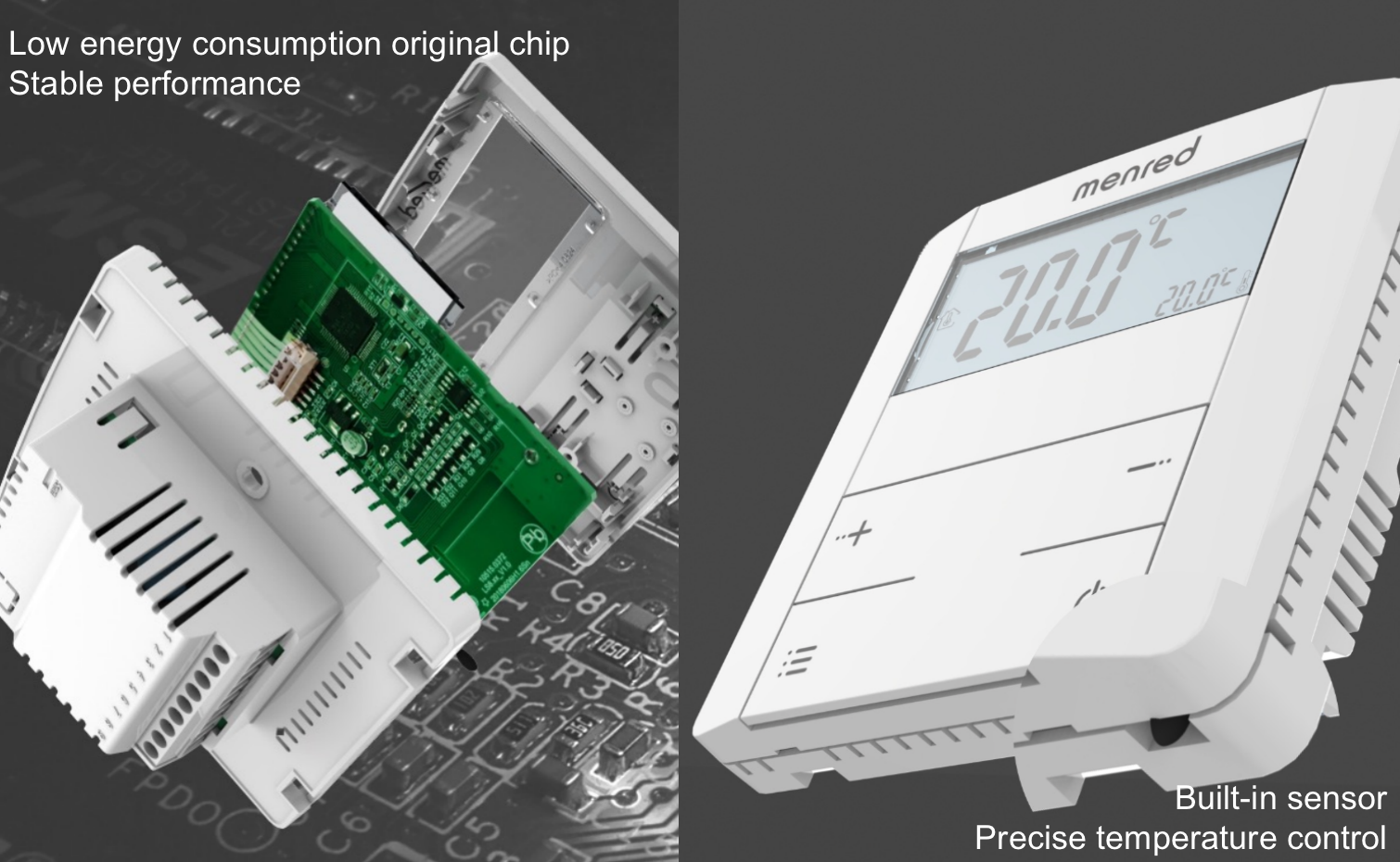

MENRED LS8 digital thermostat designed for underfloor heating system, simple display, big digital sign, precise temperature control, embedded low energy consumption chip, stable performance.


Technical data

Output voltage: AC220V

Ambient humidity:<95%

Power consumption: ≤1.5W

Measured temperature range: -9.5~99.5℃

Control temperature: 5~90℃

Ambient temperature: -10~55℃

Protection class: IP20

RS485 communication: Modbus protocol


Selection table

Model Current Control method
LS8.1616Abuilt-in&floor sensor; control and limit temperature
LS8.233Abuilt-in&floor sensor; potential-free output


FAQs

Where to install room thermostat? Where to install room thermostat?
The room thermostat should be installed in a place that is easy to operate and cover the average temperature, place(such as living room, bedroom etc.) can avoid the direct sunlight, cold and heat source.
Read More
What kind of heat source of underfloor heating? What kind of heat source of underfloor heating?
There are Gas boiler, ground source heat pump, air source heat pump and Electricity.
Read More
What is the different between thermostat 3A and 16A? What is the different between thermostat 3A and 16A?
Water heating reply load 3A maximum power 600W, electric heating replay 16A Max. Power 3000W.
Read More
Does floor heating need to equipped with external sensors? Does floor heating need to equipped with external sensors?
External sensor is for temperature limitation, not all underfloor heating need to install external sensor, we recommend that thermostat be euipped with an external sensor for electric heating to limit the overheating of the floor.
Read More
What to do if the temperature of the thermostat is inaccurate? What to do if the temperature of the thermostat is inaccurate?
The temperature value can be calibrated by entering the advanced setting temperature calibration item.
Read More
How to solve the problem when the thermostat LCD displays Er1? How to solve the problem when the thermostat LCD displays Er1?
The 3A thermostat can change the built-in temperature measurement method through advanced settings, and the 16A thermostat needs to check the whether external sensor is loosely connected or the sensor is damaged and needs to be replaced.
Read More
What App can be used to control the menred wifi thermostat? What App can be used to control the menred wifi thermostat?
Menred wifi thermostat adopts Tuya App and alicloud IoT with a very stable operating system.
Read More
How does the menred wireless thermostat work? How does the menred wireless thermostat work?
Wifi thermostat through wireless moble communication transmission after network configuration. RS485 communication wireless thermostat through the radio frequency communication via RF.RS485 is known for being able to be used effectively over long distances and in electrically noisy environments. due to this and it being able to transmit data over long distances.
Read More
What should I do if the home network is normal, but the wifi thermostat is not connected to the Internet? What should I do if the home network is normal, but the wifi thermostat is not connected to the Internet?
1.The wifi thermostat and router are too far to get the signal, you may amplify the transmitted signal or move the two closer. 2.Replace a new wifi thermostat when you try to configure the network through the hotspot and it fails to connect.
Read More
