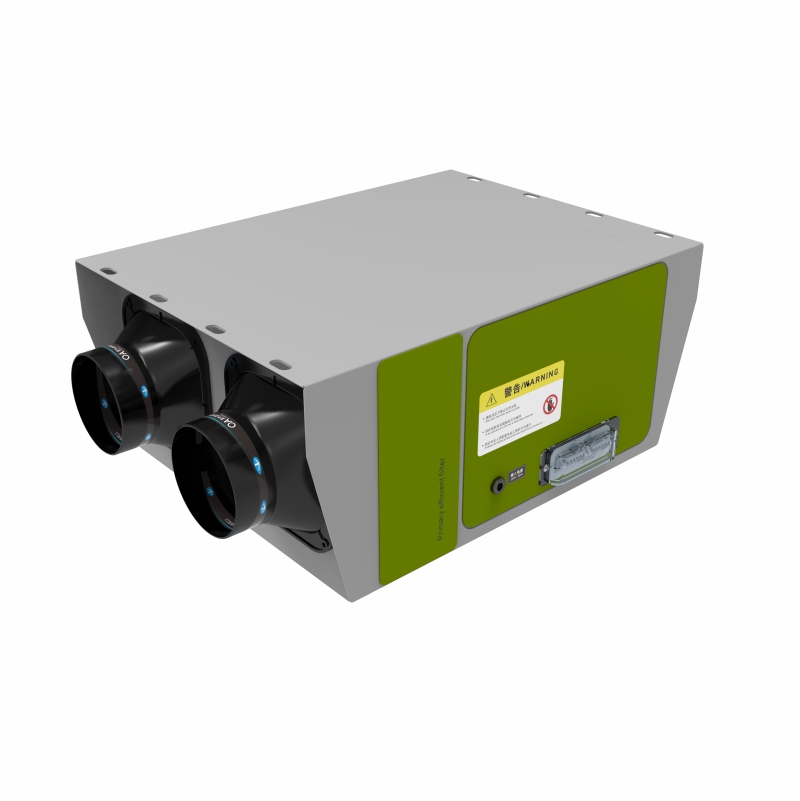

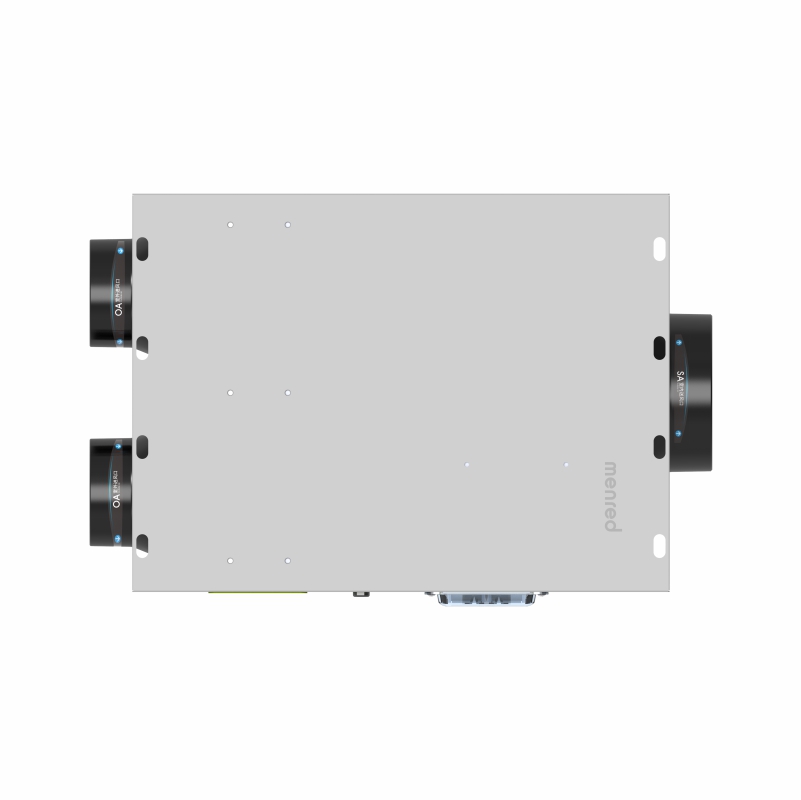

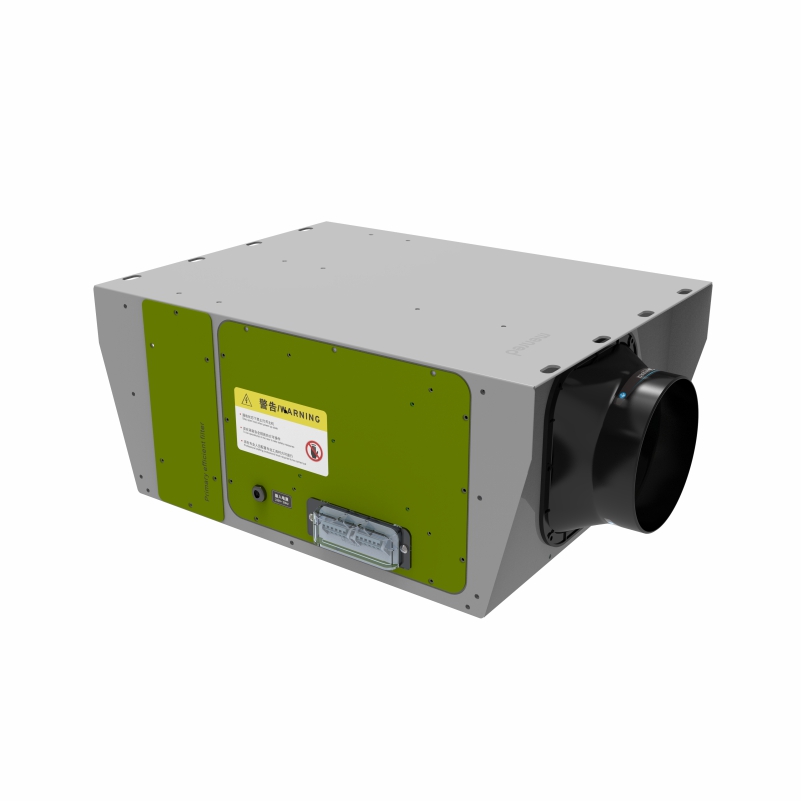

KC500 Micro Positive Pressure Make-Up Air Ventilator

The Menred KC500 is engineered to eliminate negative air pressure in kitchens and maximize your range hood’s performance. By delivering a controlled flow of fresh, filtered outdoor air, the KC500 creates a micro positive pressure environment that pushes smoke and odors out faster—keeping your kitchen cleaner and more comfortable.

Inquiry Now

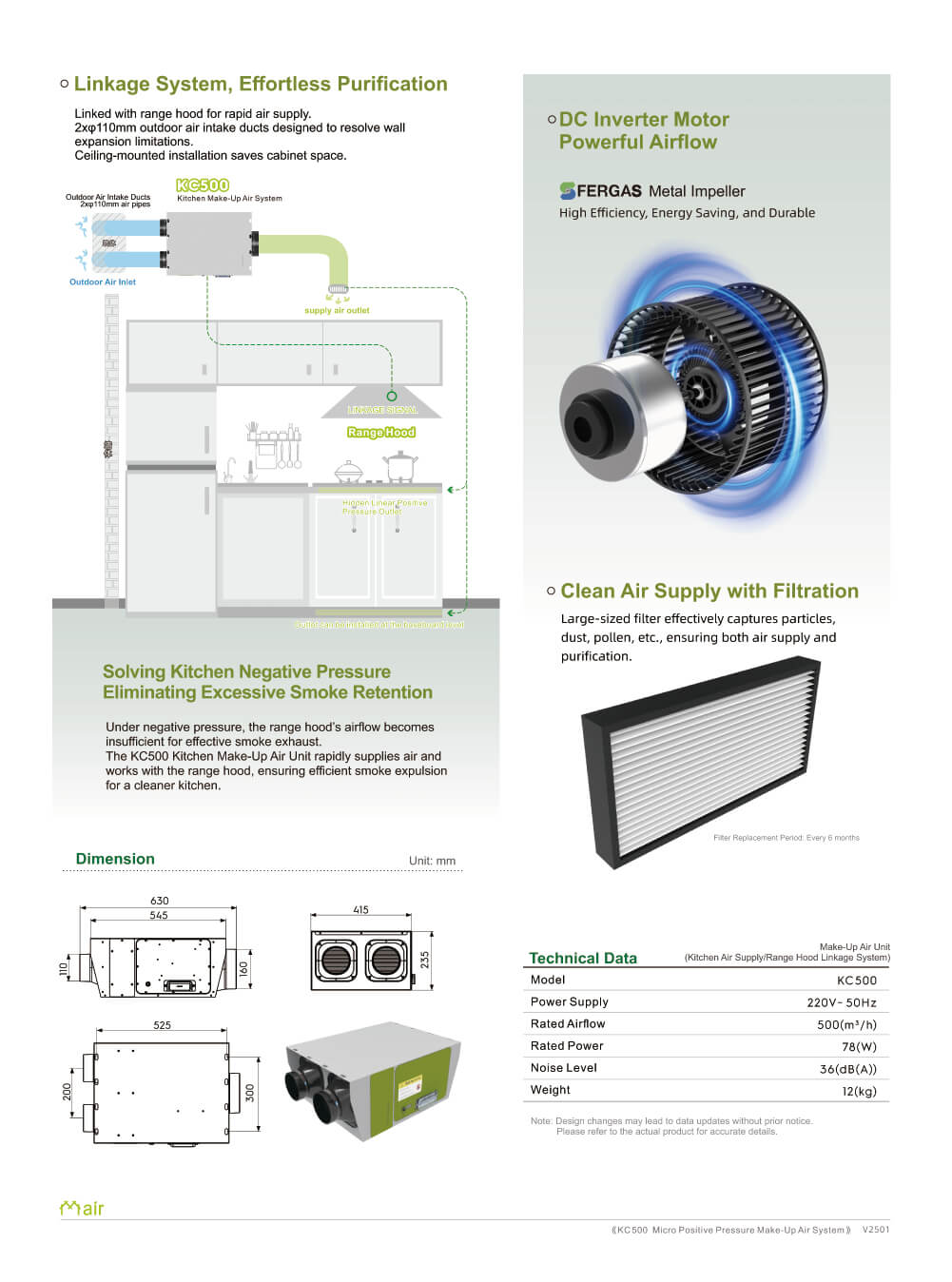

Smart Linkage With Your Range Hood

The KC500 automatically synchronizes with the range hood. When the hood turns on, fresh air is instantly supplied to support high-efficiency smoke extraction.

· Ceiling-mounted installation saves cabinet space

· Dual φ110 mm air ducts enable flexible placement and help overcome wall thickness limitations

Efficient, Quiet, and Durable Performance

Equipped with a DC inverter motor and a FERGAS metal impeller, the KC500 ensures reliable airflow with low energy consumption and minimal noise.

· Airflow: 500 m³/h

· Noise: as low as 36 dB(A)

· Power Consumption: 78 W

Purified Fresh Air for a Healthier Kitchen

A high-capacity filter captures dust, pollen, and fine particles before air enters the home, ensuring clean and fresh airflow. The filter is easy to replace and recommended every six months for best performance.

Key Benefits

· Prevents negative pressure to enhance range hood extraction

· Supplies filtered outdoor air for healthier indoor environments

· Smart automatic operation with range hood linkage

· Space-saving ceiling installation design

· Low noise, high efficiency, long service life
