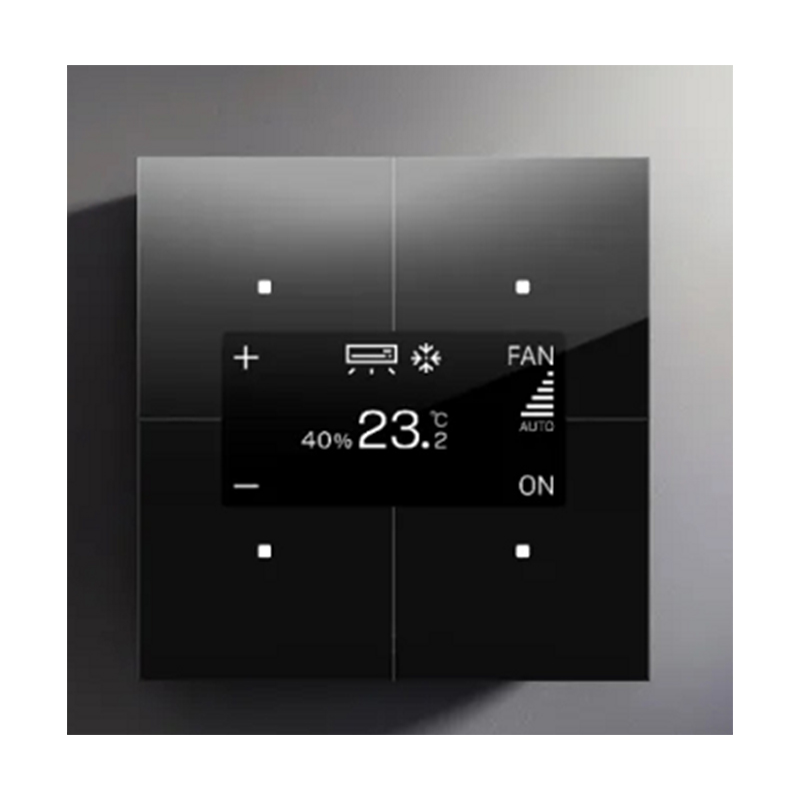

CLV21.30 Temperature Control Switch

The switch is a multi-function intelligent temperature control switch. It can control air conditioning and floor heating at the same time, support transmitting wireless signals to control other light actuators, and also support display of air quality parameters, such as carbon dioxide, PM2.. 5. Data such as formaldehyde. 9mm glass panel, LCD display.

Inquiry Now

Technical data

Working voltage ：AC110V~AC230V 50HZ

Operating temperature： -20~5O℃

Operating humidity： < 95% (no condensation)

Storage temperature ：-20 to 6O℃

Storage humidity Humidity： < 95% (no condensation)

Wireless communication： EnOcean 868MHZ/ASK

protocol for wired communication：RS485/Modbus

Linkage: Passive linkage

IP：20

Model	Color	Function
CLV21.30E	White	Air conditioning &floor heating temperature control switch
CLV21.31E	Black	Air conditioning &floor heating temperature control switch
CLV21.63E	Silverand palladium	Air conditioning& floor heating temperature control switch
